Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Wiper / Washer / Washer Motor / Installation

INSTALLATION

CAUTION / NOTICE / HINT

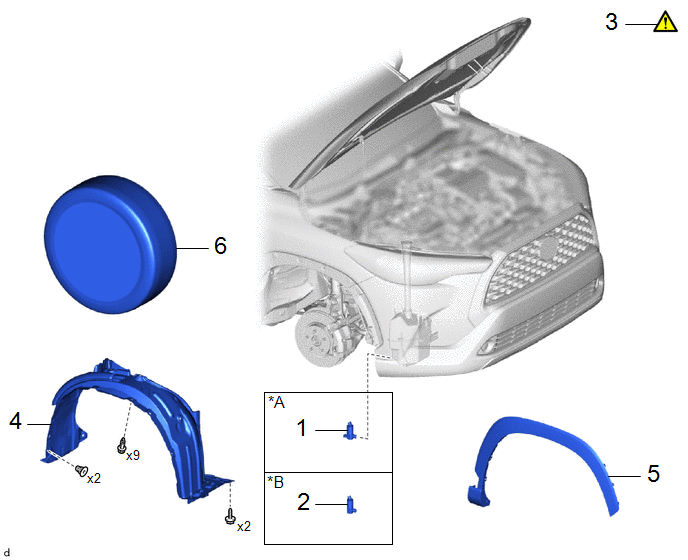

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

85310

-

-

-

2

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

85310

-

-

-

3

ADD WASHER FLUID

-

-

-

4

FRONT FENDER LINER RH

53875A

-

-

-

5

FRONT FENDER MOULDING SUB-ASSEMBLY RH

75601A

-

-

-

6

FRONT WHEEL RH

-

-

-

-

*A

w/ Rear Wiper

*B

w/o Rear Wiper

PROCEDURE

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (w/ Rear Wiper)

2. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (w/o Rear Wiper)

3. ADD WASHER FLUID

4. INSTALL FRONT FENDER LINER RH

5. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY RH

(a) Use the same procedure as for the LH side.

Click here

6. INSTALL FRONT WHEEL RH

Click here
