Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Door / Hatch / Back Door Opener Switch / Removal

REMOVAL

CAUTION / NOTICE / HINT

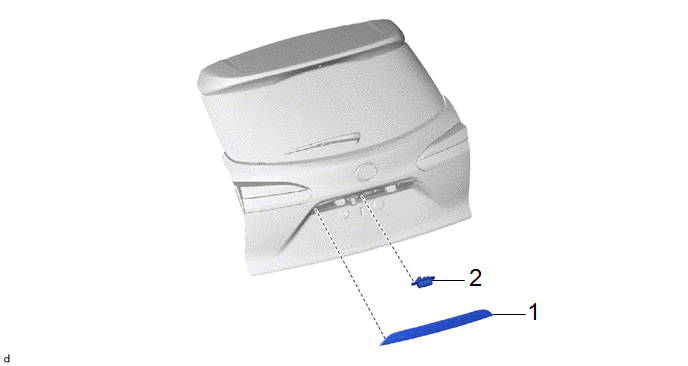

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BACK DOOR OUTSIDE GARNISH

76811

-

-

-

2

BACK DOOR OPENER SWITCH ASSEMBLY

84840G

-

-

-

PROCEDURE

1. REMOVE BACK DOOR OUTSIDE GARNISH

Click here

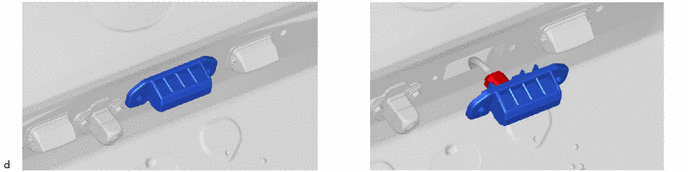

2. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
