Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

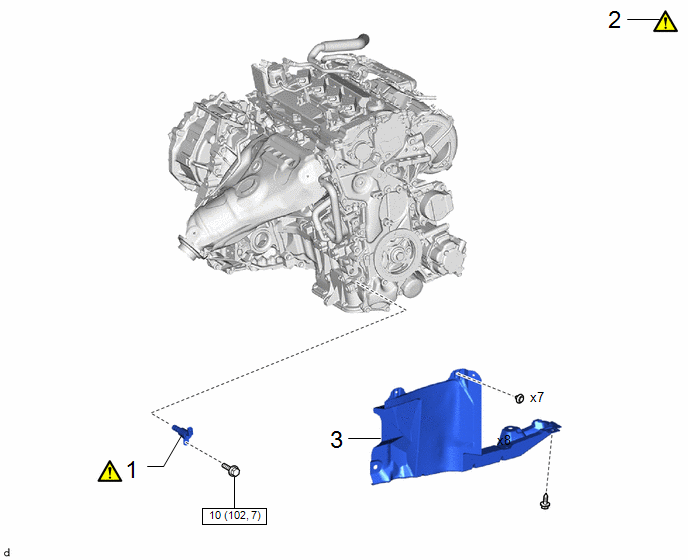

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | OIL PRESSURE CONTROL VALVE ASSEMBLY |
15250 | - |
- | - |
|
2 | INSPECT FOR ENGINE OIL LEAK |
- |
|
- | - |
|
3 | REAR ENGINE UNDER COVER RH |
51443C | - |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
CAUTION / NOTICE / HINT
NOTICE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Click here .gif)
PROCEDURE

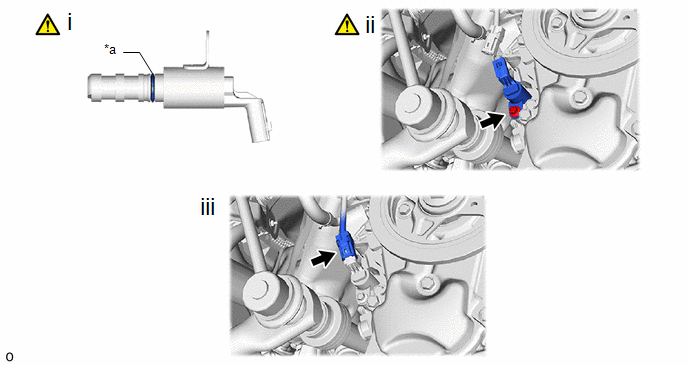

1. INSTALL OIL PRESSURE CONTROL VALVE ASSEMBLY
|
*a | O-Ring |
- | - |
(1) Apply a small amount of engine oil to the O-ring of the oil pressure control valve assembly.
(2) Using an 8 mm socket wrench, install the oil pressure control valve assembly to the No. 2 timing chain cover assembly with the bolt.
Torque:
10 N·m {102 kgf·cm, 7 ft·lbf}
NOTICE:
- When reusing the oil pressure control valve assembly, inspect the O-ring.
- Make sure that the O-ring is not cracked or does not move out of place during installation.
(3) Connect the oil pressure control valve assembly connector.
2. INSPECT FOR ENGINE OIL LEAK
|
|
Click here |
3. INSTALL REAR ENGINE UNDER COVER RH
Click here
