Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

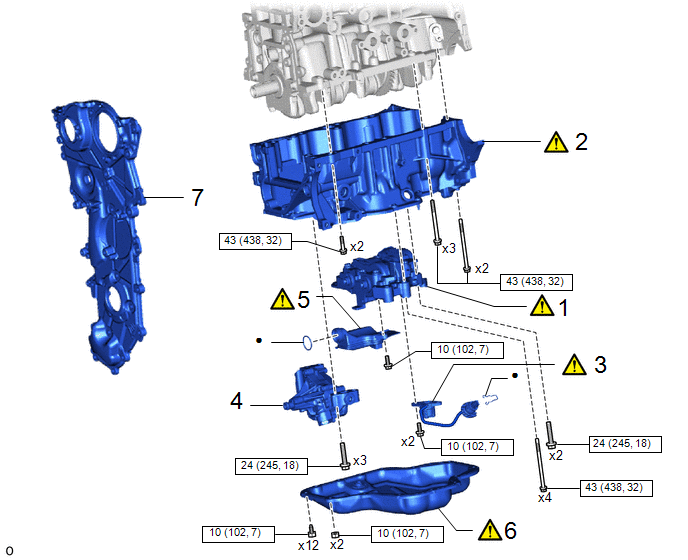

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ENGINE BALANCER ASSEMBLY

-

-

-

2

STIFFENING CRANKCASE ASSEMBLY

11420

-

-

3

ENGINE OIL LEVEL SENSOR

89491

-

-

4

OIL PUMP ASSEMBLY

15100

-

-

-

5

OIL STRAINER SUB-ASSEMBLY

15104

-

-

6

OIL PAN SUB-ASSEMBLY

12101

-

-

7

TIMING CHAIN COVER ASSEMBLY

11310

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL ENGINE BALANCER ASSEMBLY

Click here

2. INSTALL STIFFENING CRANKCASE ASSEMBLY

Click here

3. INSTALL ENGINE OIL LEVEL SENSOR

Click here

4. INSTALL OIL PUMP ASSEMBLY

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

5. INSTALL OIL STRAINER SUB-ASSEMBLY

Click here

6. INSTALL OIL PAN SUB-ASSEMBLY

Click here

7. INSTALL TIMING CHAIN COVER ASSEMBLY

Click here
