Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

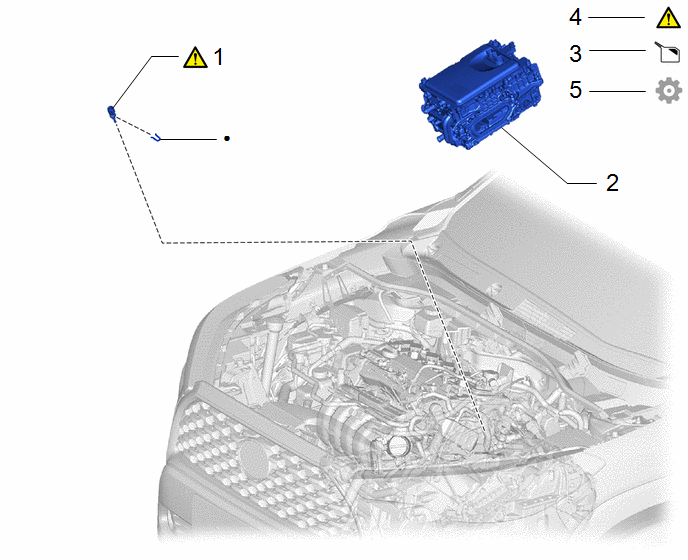

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ENGINE COOLANT TEMPERATURE SENSOR

89422A

-

-

2

INVERTER WITH CONVERTER ASSEMBLY

G92A0

-

-

-

3

ADD ENGINE COOLANT

-

-

-

4

INSPECT FOR COOLANT LEAK

-

-

-

5

PERFORM INITIALIZATION

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

PROCEDURE

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

HINT:

Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

Click here

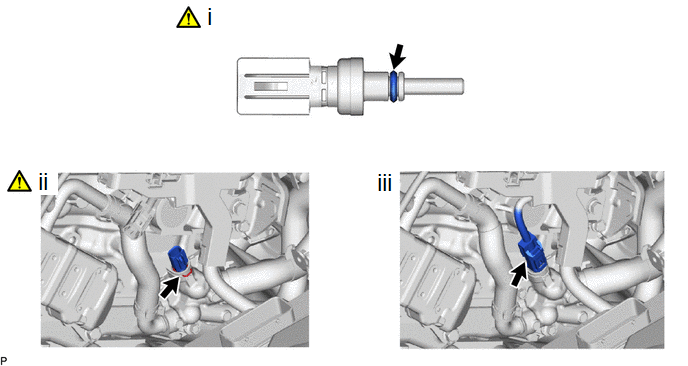

(1) Apply a light coat of engine coolant to the O-ring of the engine coolant temperature sensor.

(2) Install the engine coolant temperature sensor to the water outlet with a new clip.

NOTICE:

  • If the engine coolant temperature sensor has been struck or dropped, replace it.
  • If reusing the engine coolant temperature sensor, be sure to inspect the O-ring.
  • Make sure that the O-ring is not cracked or moved out of place when installing the engine coolant temperature sensor.

(3) Connect the engine coolant temperature sensor connector.

2. INSTALL INVERTER WITH CONVERTER ASSEMBLY

Click here

3. ADD ENGINE COOLANT (for Engine)

Click here

4. INSPECT FOR COOLANT LEAK (for Engine)

Click here

5. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

Click here
