REMOVAL

CAUTION / NOTICE / HINT

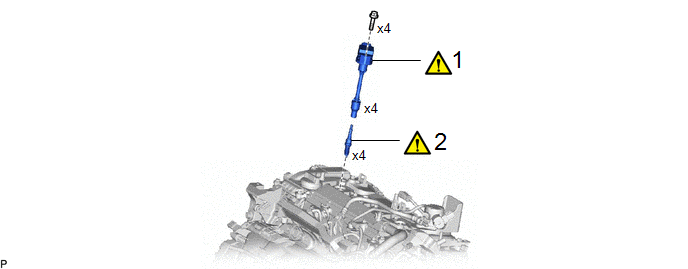

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

IGNITION COIL ASSEMBLY

19500

-

-

2

SPARK PLUG

19100P

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ignition coil assembly or spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Replacement of ignition coil assembly
  • Replacement of spark plug

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE IGNITION COIL ASSEMBLY

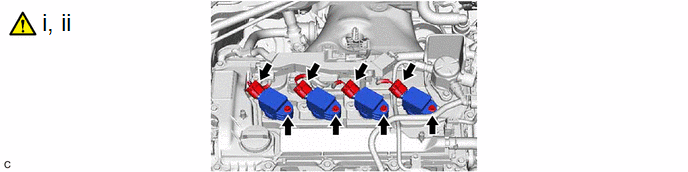

(1) Disconnect the 4 ignition coil assembly connectors.

(2) Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.

NOTICE:

If an ignition coil assembly has been struck or dropped, replace it.

2. REMOVE SPARK PLUG
