Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

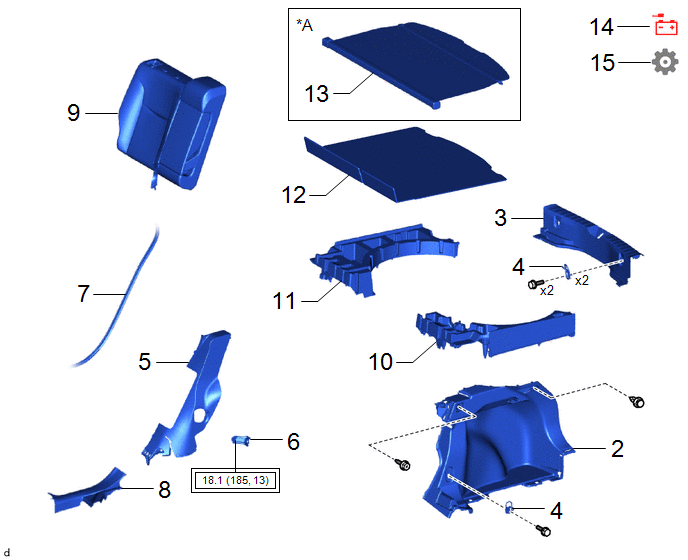

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

4WD ECU ASSEMBLY

89630A

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Procedure

Part Name Code

2

DECK TRIM SIDE PANEL ASSEMBLY RH

64730B

-

-

-

3

REAR DECK TRIM COVER

64716D

-

-

-

4

LUGGAGE HOLD BELT STRIKER ASSEMBLY

58460D

-

-

-

5

REAR SEAT SIDE GARNISH RH

62551F

-

-

-

6

REAR SEAT BACK HINGE SUB-ASSEMBLY RH

71303C

-

-

-

7

REAR DOOR OPENING TRIM WEATHERSTRIP RH

62331A

-

-

-

8

REAR DOOR SCUFF PLATE RH

67917A

-

-

-

9

REAR SEATBACK ASSEMBLY RH

-

-

-

-

10

DECK FLOOR BOX LH

64997

-

-

-

11

DECK FLOOR BOX RH

64995

-

-

-

12

DECK BOARD ASSEMBLY

58410B

-

-

-

13

TONNEAU COVER ASSEMBLY

64910J

-

-

-

14

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

15

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

*A

w/ Tonneau Cover

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

PROCEDURE

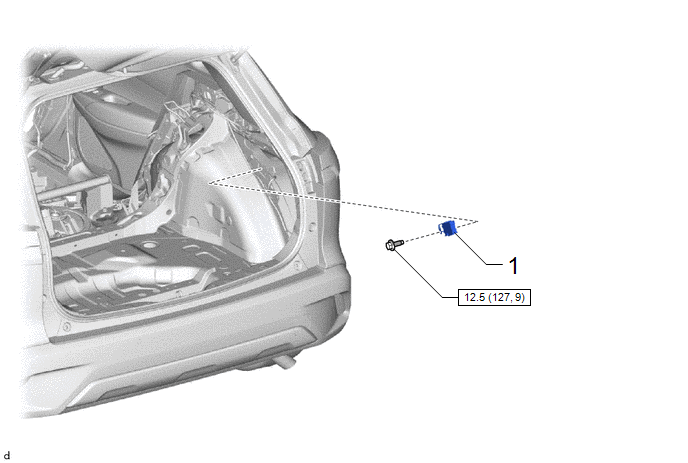

1. INSTALL 4WD ECU ASSEMBLY

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

3. INSTALL REAR DECK TRIM COVER

4. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

5. INSTALL REAR SEAT SIDE GARNISH RH

6. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY RH

(a) Use the same procedure as for the LH side.

Click here

7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

8. INSTALL REAR DOOR SCUFF PLATE RH

9. INSTALL REAR SEATBACK ASSEMBLY RH

Click here

10. INSTALL DECK FLOOR BOX LH

11. INSTALL DECK FLOOR BOX RH

12. INSTALL DECK BOARD ASSEMBLY

13. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

14. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

15. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
