Toyota Corolla Cross: Cold Start Ignition Timing Performance (P050B00)

MONITOR DESCRIPTION

A monitor will run when the engine is started at an engine coolant temperature of -10 (14°F) or higher, and less than 50°C (122°F). If certain conditions are met, a DTC is stored after the engine idles for 15 seconds (2 trip detection logic).

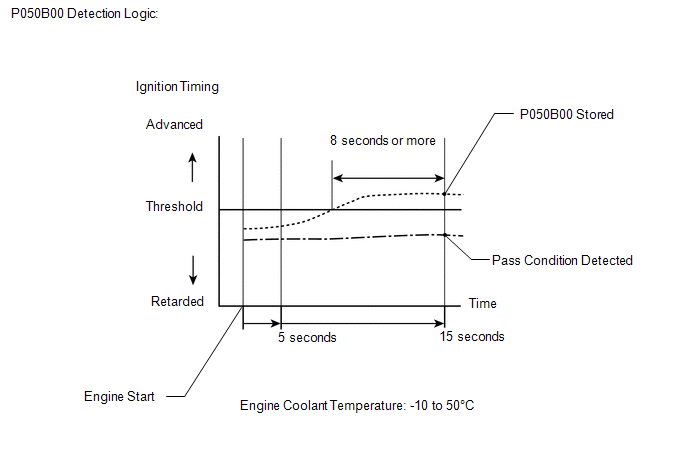

This DTC is designed to monitor the ignition timing at cold start. When the engine is started at an engine coolant temperature of less than 50°C (122°F), the ECM checks the ignition timing during engine idling. If the ignition timing advances beyond the specified level within 10 seconds, the ECM interprets this as a malfunction, illuminates the MIL and stores this DTC.

NOTICE:

The idle speed control learned values are cleared by performing learning value reset. Idle speed control learning needs to be performed before this DTC can be stored.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P050B00

Cold Start Ignition Timing Performance

Ignition timing insufficiently retarded at cold start (2 trip detection logic).

  • Throttle body with motor assembly
  • Mass air flow meter sub-assembly
  • PCV system
  • Air cleaner filter element sub-assembly
  • Intake system
  • VVT system
  • EGR valve assembly
  • Wire harness or connector
  • ECM

Comes on

  • SAE Code: P050B
  • DTC for Mexico Models: Does not apply

MONITOR STRATEGY

Related DTCs

P050B: Cold start ignition timing performance

Required Sensors/Components (Main)

Throttle body with motor assembly

Required Sensors/Components (Related)

Engine coolant temperature sensor

Mass air flow meter sub-assembly

Frequency of Operation

Once per driving cycle

Duration

10 seconds

MIL Operation

2 driving cycles

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

P0010, P1360, P1362, P1364, P1366, P2614 (Motor drive VVT system control module)

P0011 (VVT system - advance)

P0012 (VVT system - retard)

P0013 (Exhaust VVT oil control solenoid)

P0014 (Exhaust VVT system - advance)

P0015 (Exhaust VVT system - retard)

P0016 (VVT system - misalignment)

P0017 (Exhaust VVT system - misalignment)

P0087, P0088, P0191, P0192, P0193 (Fuel pressure sensor (for high pressure side))

P0101, P0102, P0103 (Mass air flow meter)

P0107, P0108 (Manifold absolute pressure)

P0116, P0117, P0118 (Engine coolant temperature sensor)

P0121, P0122, P0123, P0222, P0223, P2135 (Throttle position sensor)

P0125 (Insufficient coolant temperature for closed loop fuel control)

P014C, P014D, P015A, P015B, P2195, P2196, P2237, P2238, P2239, P2252, P2253 (Air fuel ratio sensor (sensor 1))

P0171, P0172 (Fuel system)

P0201, P0202, P0203, P0204, P062D, P21CF, P21D0, P21D1, P21D2 (Fuel injector)

P0300, P0301, P0302, P0303, P0304 (Misfire)

P0335, P0337, P0338 (Crankshaft position sensor)

P0340, P0342, P0343 (Camshaft position sensor)

P0365, P0367, P0368 (Exhaust camshaft position sensor)

P0401 (EGR system (closed))

P0657, P0658, P2102, P2103, P2111, P2112, P2119 (Throttle actuator)

P107B, P107C, P107D (Fuel pressure sensor (for low pressure side))

P11EA, P11EC, P11ED, P11EE, P11EF, P219A, P219C, P219D, P219E, P219F (Air-fuel ratio imbalance)

P1235 (High pressure fuel pump circuit)

P2228, P2229 (Atmospheric pressure sensor)

Auxiliary battery voltage

8 V or higher

Time after engine start

5 seconds or more

Starter

Off

Engine coolant temperature at engine start

-10°C (14°F) or higher

Engine coolant temperature

-10°C (14°F) or higher, and less than 50°C (122°F)

Fuel-cut

Off

Vehicle speed

Less than 32767 km/h (20360 mph)

Atmospheric pressure

76 kPa(abs) [11 psi(abs)] or higher

TYPICAL MALFUNCTION THRESHOLDS

Accumulated time when ignition timing retard is cut off

8 seconds or more

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON.
  7. Turn the GTS on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine and warm it up for 5 minutes or more.
  10. Stop the engine.
  11. Leave the vehicle outside overnight.
  12. Turn the ignition switch to ON [A].
  13. Turn the GTS on.
  14. Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.
  15. Check that the value of the Data List item Coolant Temperature is between -10 and 50°C (14 and 122°F).
  16. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  17. Start the engine and warm it up until the engine coolant temperature is the same as the coolant temperature in the Freeze Frame Data.
  18. Idle the engine for 1 minute or more [B].
  19. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  20. Read the pending DTC.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  21. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  22. Input the DTC: P050B00.
  23. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, idle the engine for 3 minutes, let the engine cool down, and then perform steps [A] through [B] again.
    • Idle the engine for 3 minutes, let the engine cool down, and then perform steps [A] through [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P010012.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

  • DTC P050B00 may be set when the engine has the symptoms listed below. If necessary, check the trouble areas listed below.

    Symptoms

    Factor

    Trouble Area

    Low idle speed when engine is cold

    (immediately after engine start)

    Excessive engine friction

    Engine oil deterioration

    Rough idle when engine is cold

    (immediately after engine start)

    Abnormal combustion

    Fuel quality

  • Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P050B00)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P050B00 is output

A

DTC P050B00 and other DTCs are output

B

HINT:

If any DTCs other than P050B00 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

READ VALUE USING GTS (FUEL TRIM)

HINT:

Calculate the total fuel trim values to check the characteristic deviation of the mass air flow meter sub-assembly.

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(b) Start the engine.

(c) Enter the following menus.

Powertrain > Engine > Data List

Tester Display

Short FT B1S1

Long FT B1S1

(d) Read the values displayed on the GTS at engine idle.

(e) Add the Short FT B1S1 and Long FT B1S1 values to obtain the total fuel trim.

Standard:

GTS Display

Specified Condition

Total of Short FT B1S1 and Long FT B1S1

Between -20 and 20%

NG

GO TO STEP 7

OK

3.

INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY (VISUALLY CHECK THROTTLE VALVE)

(a) Check for foreign matter between the throttle valve and housing. If necessary, clean the throttle body with motor assembly. Also, check that the throttle valve moves smoothly.

OK:

Throttle valve is not contaminated with foreign matter and moves smoothly.

NG

GO TO STEP 6

OK

4.

PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(b) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.

(c) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display

Control the EGR Step Position

Data List Display

Intake Manifold Absolute Pressure

Coolant Temperature

Engine Independent

(d) Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:

  • Make sure that the value of Data List item Engine Independent is "Operate" while performing the Active Test.
  • Do not leave the EGR valve open for 10 seconds or more during the Active Test.
  • Be sure to return the EGR valve to step 0 when the Active Test is completed.
  • Do not open the EGR valve 30 steps or more during the Active Test.

OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".

Standard:

-

Control the EGR Step Position (Active Test)

0 Steps

0 to 30 Steps

Intake Manifold Absolute Pressure

(Data List)

(EGR valve is fully closed)

Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed

HINT:

  • If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).
  • While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.
  • Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.
OK

GO TO STEP 14

NG

5.

INSPECT EGR VALVE ASSEMBLY

(a) Remove the EGR valve assembly.

Click here

(b) Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.

OK

GO TO STEP 14

NG

GO TO STEP 17

6.

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

(a) Replace the throttle body with motor assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

Click here

NEXT

GO TO STEP 21

7.

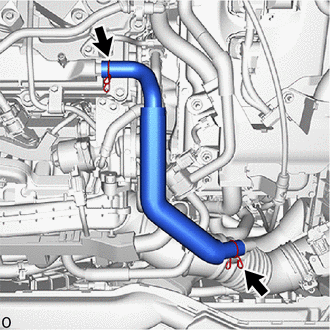

CHECK PCV VALVE AND HOSE CONNECTIONS

(a) Check the PCV hose connections.

(b) Check the PCV valve.

Click here

OK:

PCV hose and PCV valve are connected correctly and are not damaged.

NG

GO TO STEP 20

OK

8.

CHECK INTAKE SYSTEM

(a) Check the intake system for vacuum leaks.

Click here

OK:

No leaks from intake system.

NG

GO TO STEP 19

OK

9.

CHECK AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Visually check that the air cleaner filter element sub-assembly is not excessively contaminated with dirt or oil.

OK:

The air cleaner filter element sub-assembly is not excessively contaminated with dirt or oil.

NG

GO TO STEP 18

OK

10.

PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(b) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.

(c) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display

Control the EGR Step Position

Data List Display

Intake Manifold Absolute Pressure

Coolant Temperature

Engine Independent

(d) Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:

  • Make sure that the value of Data List item Engine Independent is "Operate" while performing the Active Test.
  • Do not leave the EGR valve open for 10 seconds or more during the Active Test.
  • Be sure to return the EGR valve to step 0 when the Active Test is completed.
  • Do not open the EGR valve 30 steps or more during the Active Test.

OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".

Standard:

-

Control the EGR Step Position (Active Test)

0 Steps

0 to 30 Steps

Intake Manifold Absolute Pressure

(Data List)

(EGR valve is fully closed)

Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed

HINT:

  • If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).
  • While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.
  • Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.
OK

GO TO STEP 12

NG

11.

INSPECT EGR VALVE ASSEMBLY

(a) Remove the EGR valve assembly.

Click here

(b) Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.

NG

GO TO STEP 17

OK

12.

PERFORM ACTIVE TEST USING GTS (CHECK VVT SYSTEM)

(a) Operate the VVT system through the Active Test, and check if the VVT system is operating normally.

(1) Perform the Active Test, referring to DTC P001100 Procedure (VVT-iE system for intake camshaft).

Click here

(2) Perform the Active Test, referring to DTC P001400 Procedure (VVT-i system for exhaust camshaft).

Click here

NG

GO TO STEP 16

OK

13.

READ VALUE USING GTS (MASS AIR FLOW SENSOR)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(b) Start the engine.

(c) Enter the following menus.

Powertrain > Engine > Data List

Tester Display

Engine Speed

Mass Air Flow Sensor

Coolant Temperature

(d) Allow the engine to idle until Coolant Temperature is 75°C (167°F) or higher.

(e) Read Mass Air Flow Sensor while maintaining an engine speed of 2500 rpm.

HINT:

During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, read the Data List after charge control has completed.

Standard:

GTS Display

Condition

Specified Condition

Mass Air Flow Sensor

  • Engine warmed up
  • Shift position: P
  • A/C: Off
  • Engine Speed: 2500 rpm

Between 5.5 and 18.6 gm/sec

NG

GO TO STEP 23

OK

14.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

15.

CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display

Coolant Temperature

(b) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(c) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(d) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(e) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(f) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(g) Input the DTC: P050B00.

(h) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

A

ABNORMAL

(DTC P050B00 is output)

B

A

CHECK FOR INTERMITTENT PROBLEMS

B

GO TO STEP 23

16.

CHECK AND REPAIR VVT SYSTEM

(a) Check and repair the VVT system.

HINT:

  • Refer to DTC P001100 Inspection Procedure (VVT-iE system for intake camshaft).

    Click here

  • Refer to DTC P001400 Inspection Procedure (VVT-i system for exhaust camshaft).

    Click here

NEXT

GO TO STEP 21

17.

REPLACE EGR VALVE ASSEMBLY

(a) Replace the EGR valve assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click here

NEXT

GO TO STEP 21

18.

REPLACE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Replace the air cleaner filter element sub-assembly.

NEXT

GO TO STEP 21

19.

REPAIR OR REPLACE INTAKE SYSTEM

(a) Repair or replace the intake system.

HINT:

Perform "Inspection After Repair" after repairing or replacing the intake system.

Click here

NEXT

GO TO STEP 21

20.

REPAIR OR REPLACE PCV VALVE OR HOSE

(a) Repair or replace the PCV valve or hose.

NEXT

21.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

22.

CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display

Coolant Temperature

(b) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(c) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(d) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(e) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(f) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(g) Input the DTC: P050B00.

(h) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

A

ABNORMAL

(DTC P050B00 is output)

B

A

END

B

23.

CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR CONNECTION)

(a) Check the connection and terminal contact pressure of connectors and wire harnesses between the mass air flow meter sub-assembly and ECM.

Click here

HINT:

Repair any problems.

NEXT

24.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

25.

CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display

Coolant Temperature

(b) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(c) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(d) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(e) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(f) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(g) Input the DTC: P050B00.

(h) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

A

ABNORMAL

(DTC P050B00 is output)

B

A

END

B

26.

CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)

(a) Disconnect the mass air flow meter sub-assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C26-4 (VCC) - C139-78 (VCVG)

Always

Below 1 Ω

C26-3 (FG) - C139-101 (VG)

Always

Below 1 Ω

C26-2 (E2G) - C139-79 (E2G)

Always

Below 1 Ω

C26-4 (VCC) or C139-78 (VCVG) - Body ground and other terminals

Always

10 kΩ or higher

C26-3 (FG) or C139-101 (VG) - Body ground and other terminals

Always

10 kΩ or higher

C26-2 (E2G) or C139-79 (E2G) - Body ground and other terminals

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

27.

REPLACE MASS AIR FLOW METER SUB-ASSEMBLY

(a) Replace the mass air flow meter sub-assembly.

Click here

HINT:

  • If the result of the inspection performed in step 13 (READ VALUE USING GTS (MASS AIR FLOW SENSOR)) indicated no problem, proceed to the next step without replacing the mass air flow meter sub-assembly.
  • Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

    Click here

NEXT

28.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

29.

CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display

Coolant Temperature

(b) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(c) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(d) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(e) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(f) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(g) Input the DTC: P050B00.

(h) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

A

ABNORMAL

(DTC P050B00 is output)

B

A

END

B

REPLACE ECM

    READ NEXT:

     Engine Oil Pressure Sensor/Switch "A" Circuit Short to Battery (P052012,P052014)

    DESCRIPTION Variable oil pump control uses the oil pressure control valve assembly, oil pressure and temperature sensor and ECM to optimize the oil pressure and oil volume required by each componen

     Engine Oil Pressure Sensor/Switch "A" Signal Stuck High (P052024,P05202A)

    DESCRIPTION Refer to DTC P052012. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note P052024 Engine Oil Pressure Sensor/Switch "A" Sign

     Engine Oil Pressure Too Low (Severe) (P052477,P15F009,P15F077,P15F109,P15F177)

    DESCRIPTION Variable oil pump control uses the oil pressure control valve assembly, oil pressure and temperature sensor and ECM to optimize the oil pressure and oil volume required by each component t

    SEE MORE:

     On-vehicle Inspection

    ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the power switch on (IG). PROCEDURE 1. PERFORM SPARK

     Hybrid/EV Battery Current Sensor "A" Circuit Short to Ground (P0ABF11,P0ABF15,P0B0E11,P0B0E15,P1CBB12,P1CBB14)

    DESCRIPTION A battery current sensor, which is mounted on the positive cable side of each HV battery junction block assembly, detects the current flowing to or from the battery pack. The battery current sensor sends a voltage, which varies between 0 and 5 V in proportion to the amperage, to the IB0

    © 2020-2024 Copyright www.tcorollacross.com
