Toyota Corolla Cross: Camshaft Position Sensor "B" Bank 1 No Signal (P036531)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Sfi System / Camshaft Position Sensor "B" Bank 1 No Signal (P036531)

DESCRIPTION

Refer to DTC P036511.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P036531

Camshaft Position Sensor "B" Bank 1 No Signal

Diagnosis condition:

  • The engine is running (600 rpm or more).

Abnormal condition:

  • No camshaft position sensor (for exhaust camshaft) signal.

Malfunction time:

  • 5 seconds or more

Trip logic:

  • 1 trip detection logic

Detection conditions:

  • Continuous

Sensors/components used for detection (Main):

  • Camshaft position sensor (for exhaust camshaft)

Sensors/components used for detection (Related):

  • Crankshaft position sensor
  • Open or short in camshaft position sensor (for exhaust camshaft) circuit
  • Camshaft position sensor (for exhaust camshaft)
  • ECM

Comes on
  • SAE Code: P0365
  • DTC for Mexico Models: Applies

Reference: Inspection using an oscilloscope.

Click here

MONITOR DESCRIPTION

When the engine is running and no camshaft position sensor (for exhaust camshaft) signal is received for 5 seconds or more, the ECM determines that the camshaft position sensor (for exhaust camshaft) circuit is malfunctioning and illuminates the MIL and stores a DTC.

MONITOR STRATEGY

Related DTCs

P0365: Exhaust camshaft position sensor verify pulse input

Required Sensors/Components (Main)

Camshaft position sensor (for exhaust camshaft)

Required Sensors/Components (Related)

Crankshaft position sensor

Frequency of Operation

Continuous

Duration

5 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

All of the following conditions are met

-

Engine speed

600 rpm or higher

Exhaust camshaft position sensor range check fail (P0367, P0368) (Pending / MIL)

Not detected

Ignition switch

ON

Starter

Off

Auxiliary battery voltage

8 V or higher

Exhaust camshaft position sensor voltage

0.3 to 4.7 V

TYPICAL MALFUNCTION THRESHOLDS

Exhaust camshaft position sensor signal

No signal

CONFIRMATION DRIVING PATTERN

Refer to DTC P03652A.

Click here

WIRING DIAGRAM

Refer to DTC P036511.

Click here

CAUTION / NOTICE / HINT

HINT:

  • If no problem is found through this diagnostic troubleshooting procedure, there may be a mechanical problem with the engine.
  • Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK DTC OUTPUT (DTC P036531 AND P036511 OR P036531)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P036531 is output

A

DTC P036531 and P036511 or P036515 are output

B

HINT:

  • If DTC P036511or P036515 is output, perform troubleshooting for it first.
B

GO TO DTC CHART
A

2.

CHECK TERMINAL VOLTAGE AND INTERNAL RESISTANCE (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) AND ECM)

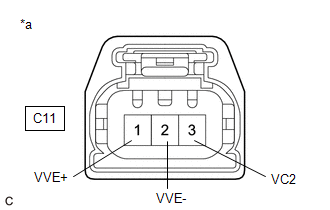

*a

Front view of wire harness connector

(to Camshaft Position Sensor (for Exhaust Camshaft))

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

(a) Disconnect the camshaft position sensor (for exhaust camshaft) connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C11-3 (VC2) - Body ground

Ignition switch ON

4.5 to 5.5 V

C11-1 (VVE+) - Body ground

Ignition switch ON

3.0 to 5.0 V

(d) Turn the ignition switch off.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C11-2 (VVE-) - Body ground

Ignition switch off

Below 1 Ω
NG

GO TO STEP 5

OK

3.

INSPECT CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

(a) Remove the camshaft position sensor (for exhaust camshaft).

Click here

(b) Confirm that there is no oil on the connecting parts of the camshaft position sensor (for exhaust camshaft) connector.

OK:

There is no oil on the connecting parts of the camshaft position sensor (for exhaust camshaft).

NG

REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

OK

4.

INSPECT CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

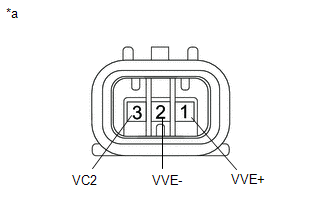

*a

Component without harness connected

(Camshaft Position Sensor (for Exhaust Camshaft))

(a) Disconnect the camshaft position sensor (for exhaust camshaft) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 (VC2) - 1 (VVE+)

Always

10 kΩ or higher

3 (VC2) - 2 (VVE-)

Always

10 kΩ or higher

1 (VVE+) - 2 (VVE-)

Always

10 kΩ or higher
OK

REPLACE ECM

NG

REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

5.

CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) - ECM)

(a) Disconnect the camshaft position sensor (for exhaust camshaft) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C11-3 (VC2) - C76-113 (VCE1)

Always

Below 1 Ω

C11-1 (VVE+) - C76-91 (EV1+)

Always

Below 1 Ω

C11-2 (VVE-) - C76-114 (EV1-)

Always

Below 1 Ω

C11-3 (VC2) or C76-113 (VCE1) - Body ground and other terminals

Always

10 kΩ or higher

C11-1 (VVE+) or C76-91 (EV1+) - Body ground and other terminals

Always

10 kΩ or higher

C11-2 (VVE-) or C76-114 (EV1-) - Body ground and other terminals

Always

10 kΩ or higher
OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
