Toyota Corolla Cross: Camshaft Position "B" - Actuator Bank 1 Circuit Open (P001313)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fxs (engine Control) / Sfi System / Camshaft Position "B" - Actuator Bank 1 Circuit Open (P001313)

DESCRIPTION

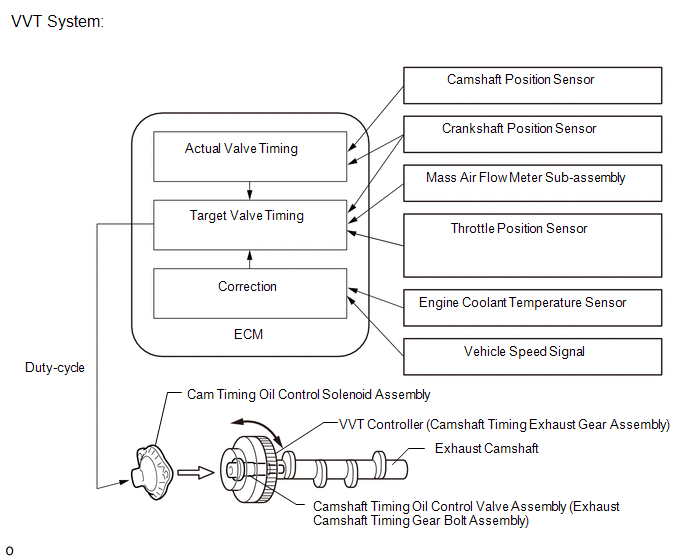

The Variable Valve Timing (VVT) system (for exhaust side) adjusts the exhaust valve timing to improve driveability. The engine oil pressure turns the VVT controller (camshaft timing exhaust gear assembly) to adjust the valve timing.

The cam timing oil control solenoid assembly operates according to signals received from the ECM to control the position of the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) and supply engine oil. The camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) moves when the ECM applies 12 V to the cam timing oil control solenoid assembly. The ECM changes the energizing time of the cam timing oil control solenoid assembly (duty-cycle) in accordance with the camshaft position, crankshaft position, throttle position, etc.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P001313

Camshaft Position "B" - Actuator Bank 1 Circuit Open

Open or short in cam timing oil control solenoid assembly circuit (1 trip detection logic).

  • Open or short in cam timing oil control solenoid assembly circuit
  • Cam timing oil control solenoid assembly
  • ECM

Comes on

  • SAE Code: P0013
  • DTC for Mexico Models: Applies

MONITOR DESCRIPTION

This DTC is designed to detect an open or short in the cam timing oil control solenoid assembly circuit. If the cam timing oil control solenoid assembly duty-cycle is excessively high or low while the ignition switch is ON or the engine is running, the ECM will illuminate the MIL and store this DTC.

MONITOR STRATEGY

Related DTCs

P0013: Cam timing oil control solenoid assembly range check

Required Sensors/Components (Main)

Cam timing oil control solenoid assembly

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

1 second

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

All

Monitor runs whenever the following DTCs are not stored

None

All of the following conditions are met

-

Auxiliary battery voltage

8 V or higher

Ignition switch

ON

Time after ignition switch off to ON

0.5 seconds or more

Case 1

Either of the following conditions is met

A or B

A. Both of the following conditions are met

-

Auxiliary battery voltage

11 V or higher, and less than 13 V

Target duty cycle

Less than 70%

B. Both of the following conditions are met

-

Auxiliary battery voltage

13 V or higher

Target duty cycle

Less than 80%

Case 2

Both of the following conditions are met

-

Current cut status

Not cut

Target duty cycle

22.5% or higher

TYPICAL MALFUNCTION THRESHOLDS

Case 1

Output duty cycle

100% or higher

Case 2

Output duty cycle

0% or less

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON.
  7. Turn the GTS on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine [A].
  10. Wait 5 seconds or more [B].
  11. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  14. Input the DTC: P001313.
  15. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [A] through [C] again.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

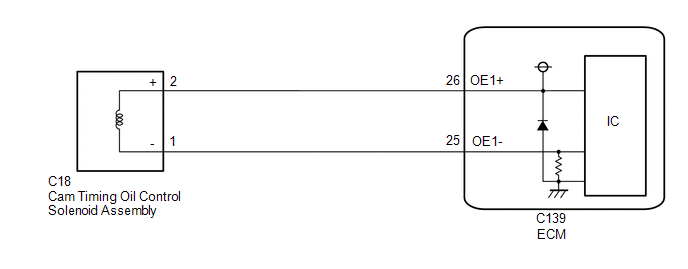

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CLEAR DTC

(a) Clear the DTC after recording the Freeze Frame Data and DTC.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

2.

READ OUTPUT DTC (DTC P001313)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(b) Start the engine.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P001313 is output

B

A

CHECK FOR INTERMITTENT PROBLEMS

B

3.

INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

NG

REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

OK

4.

CHECK HARNESS AND CONNECTOR (CAM TIMING OIL CONTROL SOLENOID ASSEMBLY - ECM)

(a) Disconnect the cam timing oil control solenoid assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C18-2 (+) - C139-26 (OE1+)

Always

Below 1 Ω

C18-1 (-) - C139-25 (OE1-)

Always

Below 1 Ω

C18-2 (+) or C139-26 (OE1+) - Body ground and other terminals

Always

10 kΩ or higher

C18-1 (-) or C139-25 (OE1-) - Body ground and other terminals

Always

10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
