Toyota Corolla Cross: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
COMPONENTS (DISASSEMBLY)
|

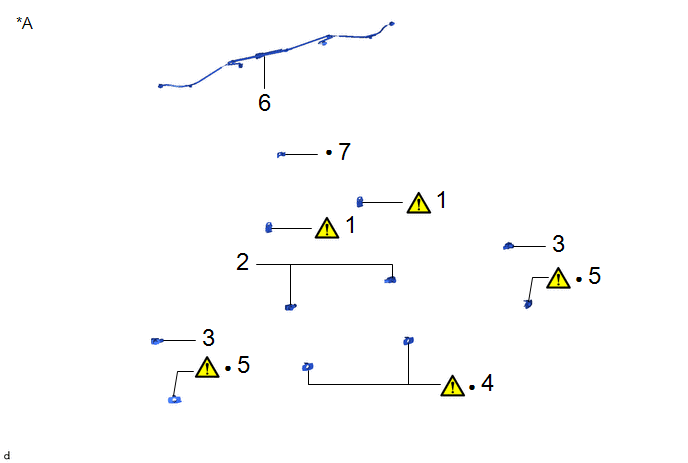

Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | ULTRASONIC SENSOR CLIP |
89348D |
|
- | - |
|
2 | REAR CENTER ULTRASONIC SENSOR |
89342A | - |
- | - |
|
3 | REAR CORNER ULTRASONIC SENSOR |
89342 | - |
- | - |
|
4 | REAR CENTER ULTRASONIC SENSOR RETAINER |
89C48B |
|
- | - |
|
5 | REAR CORNER ULTRASONIC SENSOR RETAINER |
89C48A |
|
- | - |
|
6 | NO. 9 FLOOR WIRE |
8216C | - |
- | - |
|
7 | ULTRASONIC SENSOR CLIP |
89348Y | - |
- | - |
|
*A | w/ TOYOTA Parking Assist-sensor System |
- | - |
|
● | Non-reusable part |
- | - |
|

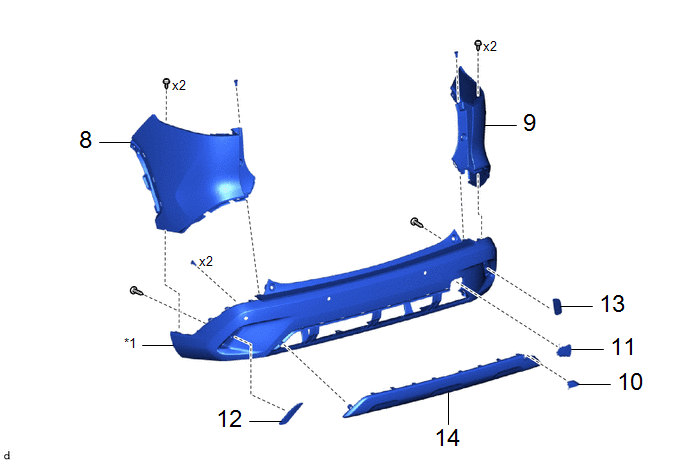

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
8 | REAR BUMPER UPPER COVER LH |
52166A | - |
- | - |
|
9 | REAR BUMPER UPPER COVER RH |
52165A | - |
- | - |
|
10 | REAR BUMPER PLATE RH |
52163A | - |
- | - |
|
11 | NO. 1 REAR BUMPER PLATE |
52162B | - |
- | - |
|
12 | REFLEX REFLECTOR ASSEMBLY LH |
81920 | - |
- | - |
|
13 | REFLEX REFLECTOR ASSEMBLY RH |
81910 | - |
- | - |
|
14 | REAR BUMPER BAR |
52151E | - |
- | - |
|
*1 | REAR BUMPER COVER |
- | - |
|

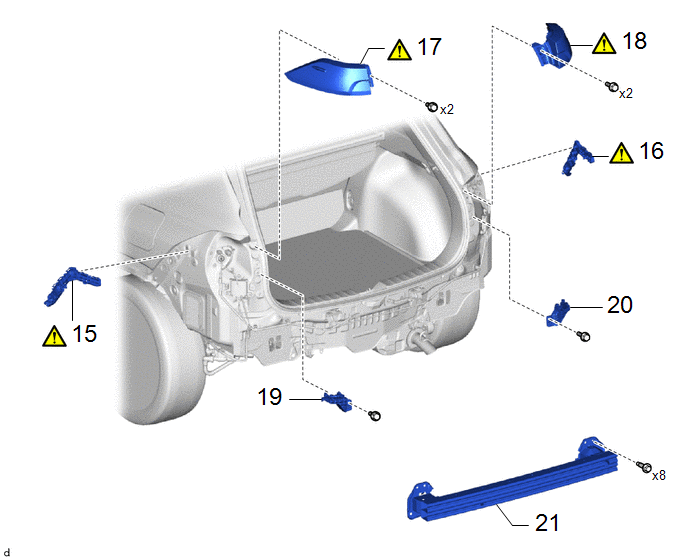

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
15 | REAR BUMPER SIDE RETAINER LH |
52576 |
|
- | - |
|
16 | REAR BUMPER SIDE RETAINER RH |
52575 |
|
- | - |
|
17 | REAR COMBINATION LIGHT ASSEMBLY LH |
81560 |
|
- | - |
|
18 | REAR COMBINATION LIGHT ASSEMBLY RH |
81550 |
|
- | - |
|
19 | REAR BUMPER UPPER RETAINER LH |
52563A | - |
- | - |
|
20 | REAR BUMPER UPPER RETAINER RH |
52562B | - |
- | - |
|
21 | REAR BUMPER REINFORCEMENT SUB-ASSEMBLY |
52023 | - |
- | - |
PROCEDURE
1. REMOVE ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)
|
|
Click here |
2. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)
Click here .gif)
3. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)
Click here
4. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)
|
|
Click here |
5. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)
|
|
Click here |

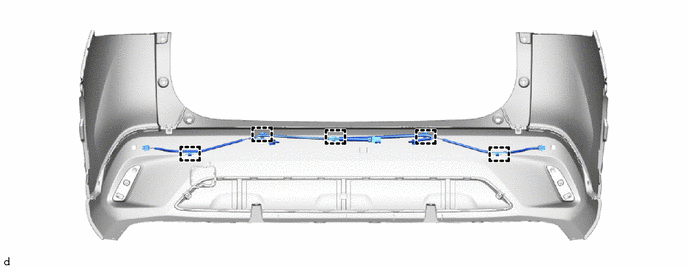

6. REMOVE NO. 9 FLOOR WIRE (w/ TOYOTA Parking Assist-sensor System)

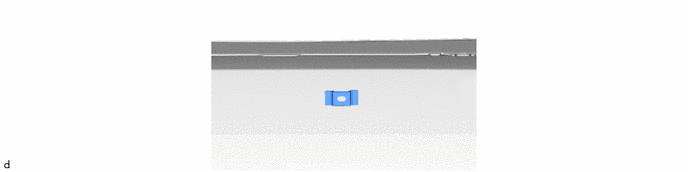

7. REMOVE ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

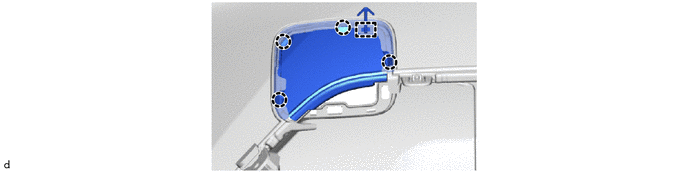

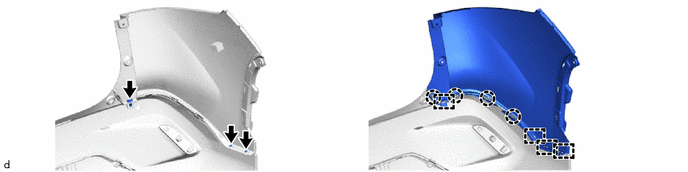

8. REMOVE REAR BUMPER UPPER COVER LH
9. REMOVE REAR BUMPER UPPER COVER RH
(a) Use the same procedure as for the LH side
10. REMOVE REAR BUMPER PLATE RH
11. REMOVE NO. 1 REAR BUMPER PLATE

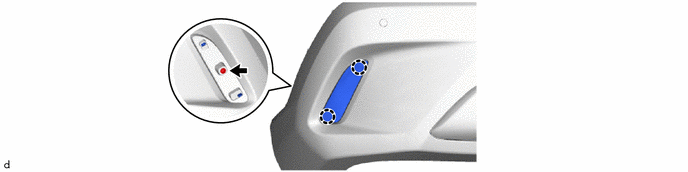

12. REMOVE REFLEX REFLECTOR ASSEMBLY LH
13. REMOVE REFLEX REFLECTOR ASSEMBLY RH
(a) Use the same procedure as for the LH side

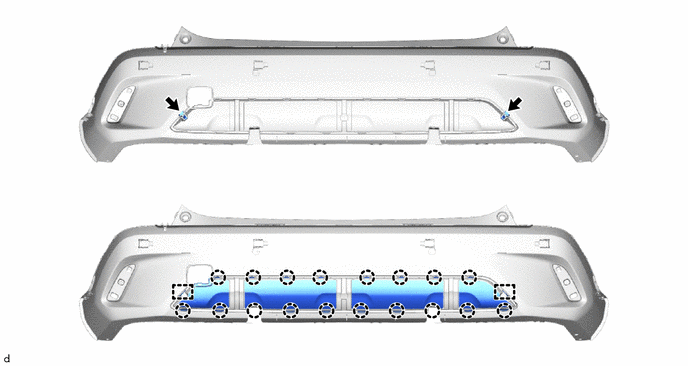

14. REMOVE REAR BUMPER BAR

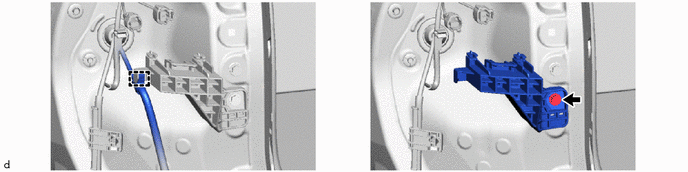

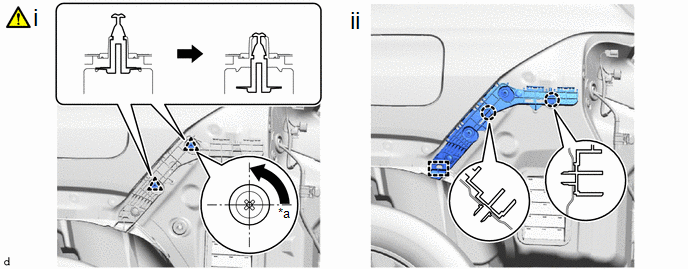

15. REMOVE REAR BUMPER SIDE RETAINER LH
|
*a | 90° |
- | - |
(1) Using a screwdriver, turn the clip 90° and disengage the clips as shown in the illustration.
(2) Disengage the claws and guide to remove the rear bumper side retainer LH.
16. REMOVE REAR BUMPER SIDE RETAINER RH
(a) Use the same procedure as for the LH side
17. REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
|
|
Click here |
18. REMOVE REAR COMBINATION LIGHT ASSEMBLY RH
(a) Use the same procedure as for the LH side

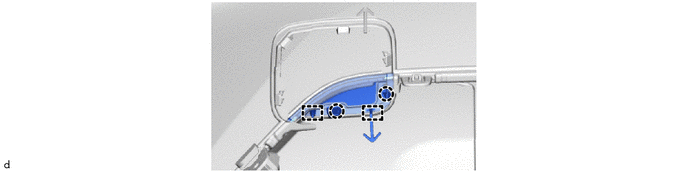

19. REMOVE REAR BUMPER UPPER RETAINER LH
20. REMOVE REAR BUMPER UPPER RETAINER RH
(a) Use the same procedure as for the LH side

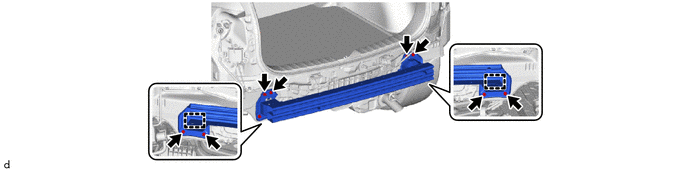

21. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
