ADJUSTMENT
CAUTION / NOTICE / HINT

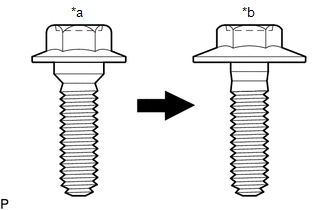

*a | Centering Bolt |
*b | Standard Bolt |
HINT:
Click here
PROCEDURE
1. INSPECT BACK DOOR

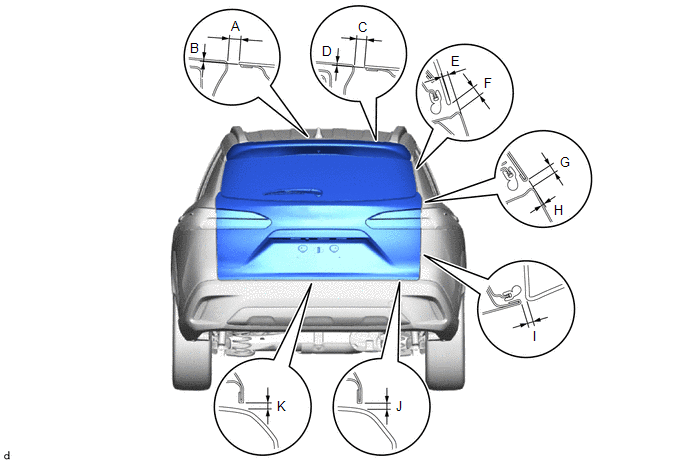

(a) Check that the clearance measurements of areas A through K are within each standard range.
Standard Clearance
Area | Measurement |
Area | Measurement |
---|---|---|---|
A | 7.9 to 10.9 mm (0.3110 to 0.4291 in.) |
B | -0.5 to 2.5 mm (-0.0197 to 0.0984 in.) |
C | 7.9 to 10.9 mm (0.3110 to 0.4291 in.) |
D | -0.5 to 2.5 mm (-0.0197 to 0.0984 in.) |
E | 3.6 mm (0.1417 in.) |
F | 6.5 mm (0.2559 in.) |
G | 4.4 to 7.4 mm (0.1732 to 0.2913 in.) |
H | -1.3 to 1.7 mm (-0.0512 to 0.0669in.) |
I | 5.5 mm (0.2165 in.) |
J | 6.0 mm (0.2362 in.) |
K | 6.0 mm (0.2362 in.) |
- | - |
2. ADJUST BACK DOOR

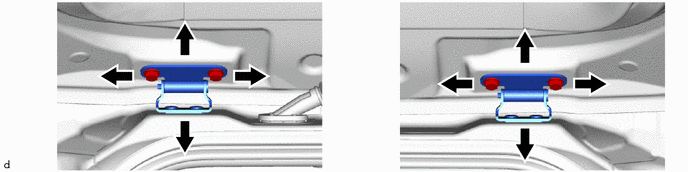

(a) Loosen the 4 hinge bolts on the back door and adjust the back door position.
(b) Tighten the 4 hinge bolts on the back door after adjustment.
Torque:
19 N·m {194 kgf·cm, 14 ft·lbf}

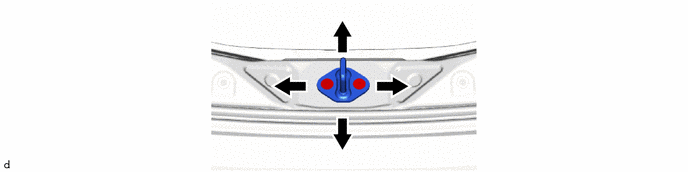

(c) Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.
(d) Using a brass bar and a hammer, hit the striker to adjust its position.
(e) Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque:
23 N·m {235 kgf·cm, 17 ft·lbf}
