Toyota Corolla Cross: Washer Nozzle (for Rear Side)
On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT REAR WASHER NOZZLE

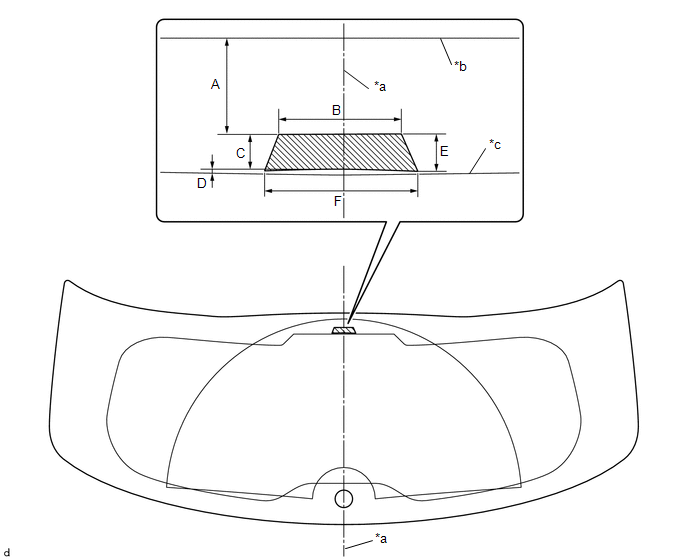

(a) Operate the rear washer nozzle and check the position that the washer fluid contacts the back door glass.
Standard:
Washer fluid contacts the back door glass in the area shown in the illustration.
|
*a | Vehicle Center Line |
*b | Back Door Glass Edge Side |
|
*c | Ceramic Line |
- | - |
.png) |
Measurement | - |
- |
Standard Measurement:
|
Area | Measurement |
Area | Measurement |
|---|---|---|---|
|
A | 30.8 mm (1.21in.) |
B | 39.6 mm (1.56 in.) |
|
C | 10.6 mm (0.417 in.) |
D | 2.0 mm (0.0787 in.) |
|
E | 11.8 mm (0.465 in.) |
F | 49.3 mm (1.94 in.) |
If the result is not as specified, adjust the rear washer nozzle.
Removal
REMOVAL
CAUTION / NOTICE / HINT

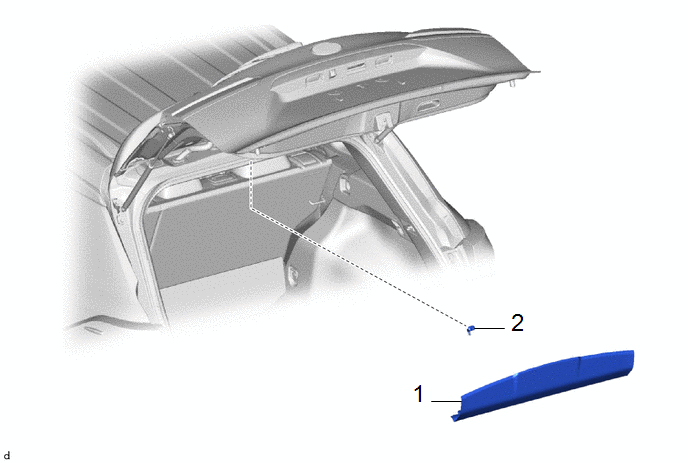

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | UPPER BACK DOOR TRIM PANEL ASSEMBLY |
64790B | - |
- | - |
|
2 | WASHER NOZZLE SUB-ASSEMBLY |
85345R | - |
- | - |
PROCEDURE
1. REMOVE UPPER BACK DOOR TRIM PANEL ASSEMBLY
Click here
.gif)

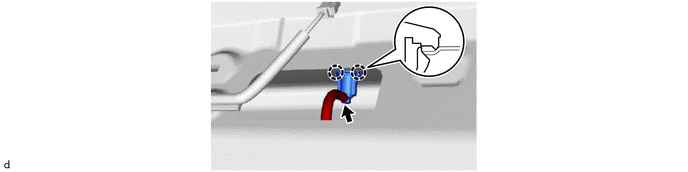

2. REMOVE REAR WASHER NOZZLE
Adjustment
ADJUSTMENT
PROCEDURE

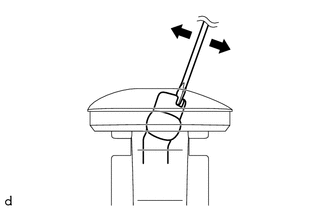

1. ADJUST REAR WASHER NOZZLE
| (a) Using a screwdriver, adjust the direction of the rear washer nozzle. NOTICE: Do not use a safety pin or other pointed tool. Doing so may damage the inside of the washer nozzle. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT

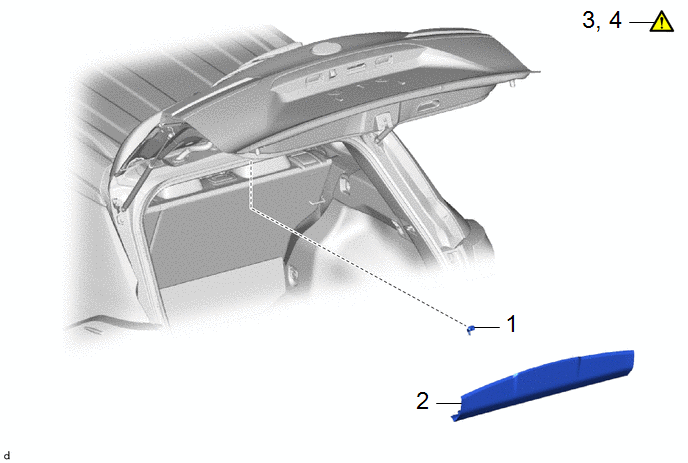

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | INSTALL WASHER NOZZLE SUB-ASSEMBLY |
85345R | - |
- | - |
|
2 | UPPER BACK DOOR TRIM PANEL ASSEMBLY |
64790B | - |
- | - |
|
3 | INSPECT WASHER NOZZLE SUB-ASSEMBLY |
85345R |
|
- | - |
|
4 | ADJUST WASHER NOZZLE SUB-ASSEMBLY |
85345R |
|
- | - |
PROCEDURE
1. INSTALL REAR WASHER NOZZLE
2. INSTALL UPPER BACK DOOR TRIM PANEL ASSEMBLY
3. INSPECT REAR WASHER NOZZLE
Click here
.gif)
4. ADJUST REAR WASHER NOZZLE
Click here
