Toyota Corolla Cross: Back Door Weatherstrip
Removal
REMOVAL
CAUTION / NOTICE / HINT

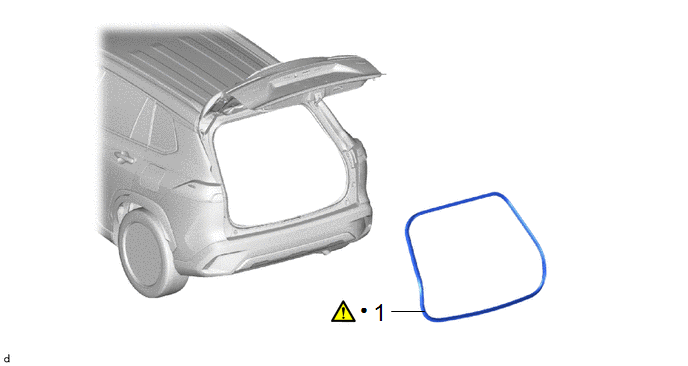

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | BACK DOOR WEATHERSTRIP |
67881A |
|
- | - |
.gif)
|
● | Non-reusable part |
- | - |
PROCEDURE

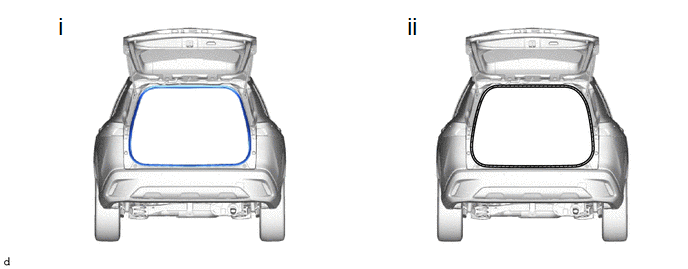

1. REMOVE BACK DOOR WEATHERSTRIP
 |
Non-drying Sealer | - |
- |
(1) Remove the back door weatherstrip.
(2) Remove any non-drying sealer on the body with non-residue solvent.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | BACK DOOR WEATHERSTRIP |
67881A |
|
- | - |
.gif)
|
● | Non-reusable part |
- | - |
PROCEDURE

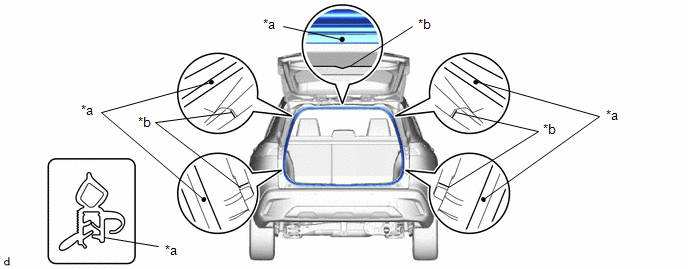

1. INSTALL BACK DOOR WEATHERSTRIP
|
*a | Paint Mark |
*b | Mark Position |
(1) Align the paint marks with the positions on the body flange and install a new back door weatherstrip.
Paint Mark (w/ Power Back Door)|
Location | Color |
|---|---|
|
Center | Yellow |
|
Side | White |
|
Location | Color |
|---|---|
|
Center | Light Blue |
|
Side | White |
NOTICE:
- Make sure to position the paint mark correctly during installation. Failure to do so may lead to water ingress.
- After installation, check that the corners fit correctly.
HINT:
Make sure to install the parts of the back door weatherstrip near the joint and paint mark shown in the illustration first, and then install the corners.
