Toyota Corolla Cross: Turn Signal Switch Circuit
DESCRIPTION
The steering sensor receives the turn signal switch information and controls the turn signal lights.

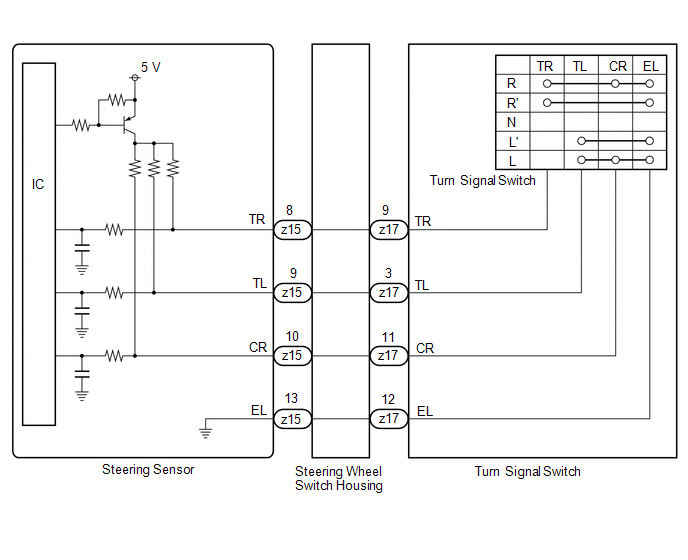

WIRING DIAGRAM
PROCEDURE
| 1. |
READ VALUE USING GTS |
(a) Read the Data List according to the display on the GTS.
Chassis > Steering Angle Sensor > Data List|
Tester Display | Measurement Item |
Range | Normal Condition |
Diagnostic Note |
|---|---|---|---|---|
|
Turn Signal Switch (Right) |
Turn signal switch (right turn position) signal |
OFF or ON | OFF: Turn signal switch not in right turn position ON: Turn signal switch in right turn position |
- |
| Turn Signal Switch (Left) |
Turn signal switch (left turn position) signal |
OFF or ON | OFF: Turn signal switch not in left turn position ON: Turn signal switch in left turn position |
- |
| Cornering Light/Front Side Illuminate Light Switch |
Turn signal switch (full turn) signal |
OFF or ON | OFF: Turn signal switch not in left or right turn position ON: Turn signal switch in left or right full turn position |
- |
|
Tester Display |
|---|
| Turn Signal Switch (Right) |
|
Turn Signal Switch (Left) |
|
Cornering Light/Front Side Illuminate Light Switch |
OK:
Normal conditions listed above are displayed.
| OK | .gif) | PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
|
|
.gif)
| 2. |
INSPECT TURN SIGNAL SWITCH |
HINT:
Click here .gif)
| NG | | REPLACE TURN SIGNAL SWITCH |
|
| 3. |
INSPECT STEERING WHEEL SWITCH HOUSING |
HINT:
Click here
| OK | | REPLACE STEERING SENSOR
|
| NG | | REPLACE STEERING WHEEL SWITCH HOUSING
|
