Toyota Corolla Cross: System Diagram
Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Mirror (ext) / Power Mirror Control System / System Diagram
SYSTEM DIAGRAM

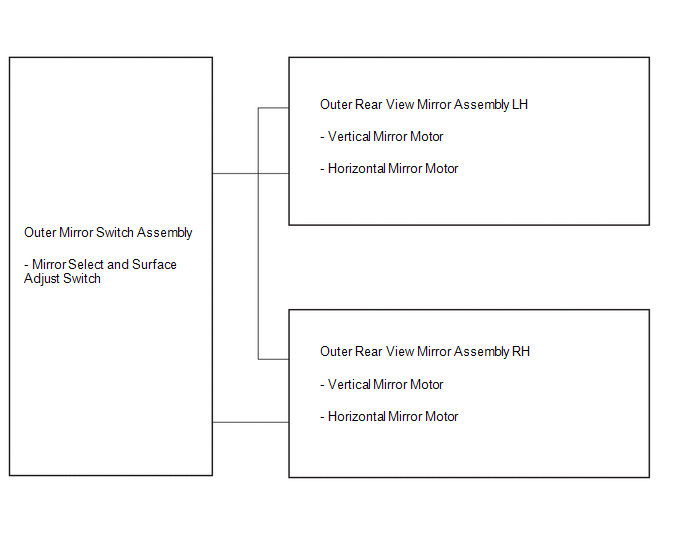

Electrical Remote Control Mirror System

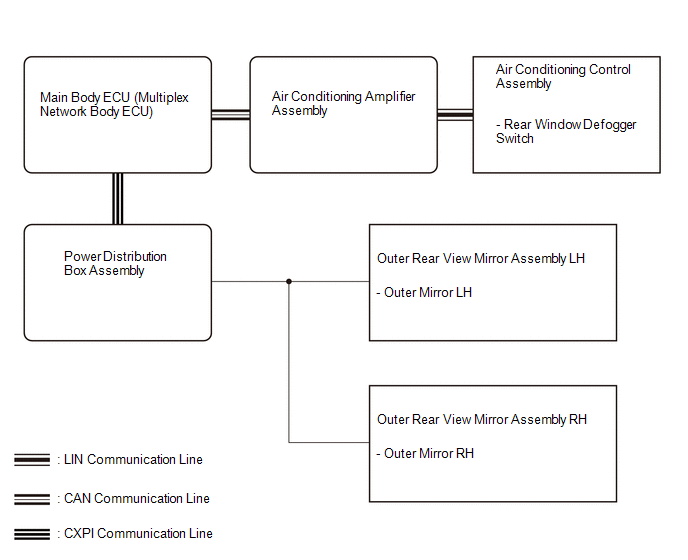

Mirror Heater System
