Toyota Corolla Cross: Starter Relay Circuit Short to Ground (P061511)

DESCRIPTION

When the engine is started by stop and start control, the engine stop and start ECU controls the starter assembly by activating the ST NO. 1 relay via voltage from terminal STA.

If overcurrent is detected in the starter relay circuit, the engine stop and start ECU stores DTC P061511.

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

CONFIRMATION DRIVING PATTERN

HINT:

DTCs for the stop and start system are not cleared even if the malfunction has been repaired. After repairing the malfunction, be sure to clear the DTCs.

HINT:

• If the cable is disconnected from the auxiliary battery terminal, stop and start control is prohibited until refresh charge is completed.

  In this case, let the vehicle idle to complete the refresh charge. The refresh charge is complete when the Data List item "Status of Battery Charge Control" changes from "Refresh Charge Mode". (Usually, by idling the engine for 5 to 60 minutes with the auxiliary battery fluid temperature at 11°C (52°F) or higher, the refresh charge will be completed.)

• If the GTS is not available and the Data List item "Status of Battery Charge Control" cannot be checked, charge the auxiliary battery by idling the engine for approximately 5 to 60 minutes or driving the vehicle, and then drive the vehicle and check that stop and start control operates.

  If the engine is started with the hood open, the system determines that a jump start has occurred. Therefore, make sure that the hood is closed before starting the engine and driving the vehicle.

• After the refresh charge completes, turn the ignition switch off, wait for at least 30 seconds, and then start the engine again. If the vehicle enters refresh charge mode again while the engine is idling, the initial refresh charge did not properly complete, so wait for the refresh charge to complete.
• Allow the engine to idle for 3 minutes after it is warmed up and check that the engine idle speed is within 50 rpm of the target idle speed.
• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure (except Mexico Models).

  Click here

• When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories (except Mexico Models).

CONFIRMATION AFTER TROUBLESHOOTING

(a) Clear the DTCs.

(b) Start the engine and warm it up.

(c) Drive the vehicle at 7 km/h (4 mph) or more.

CAUTION:

When performing Confirmation Driving Pattern, obey all speed limits and traffic laws.

(d) Depress the brake pedal and stop the vehicle.

(e) Keep the engine stopped by stop and start control for 1 second or more. (Keep the shift lever in D.)

(f) Release the brake pedal with the shift lever in D to start the engine.

(g) Check that DTCs are not output.

STOP AND START SYSTEM OPERATION CHECK

Click here

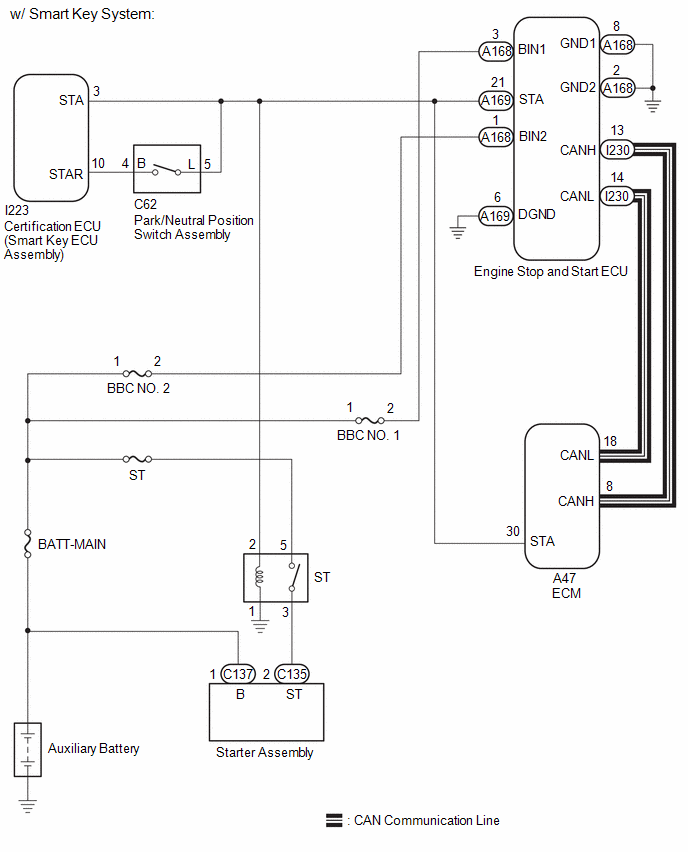

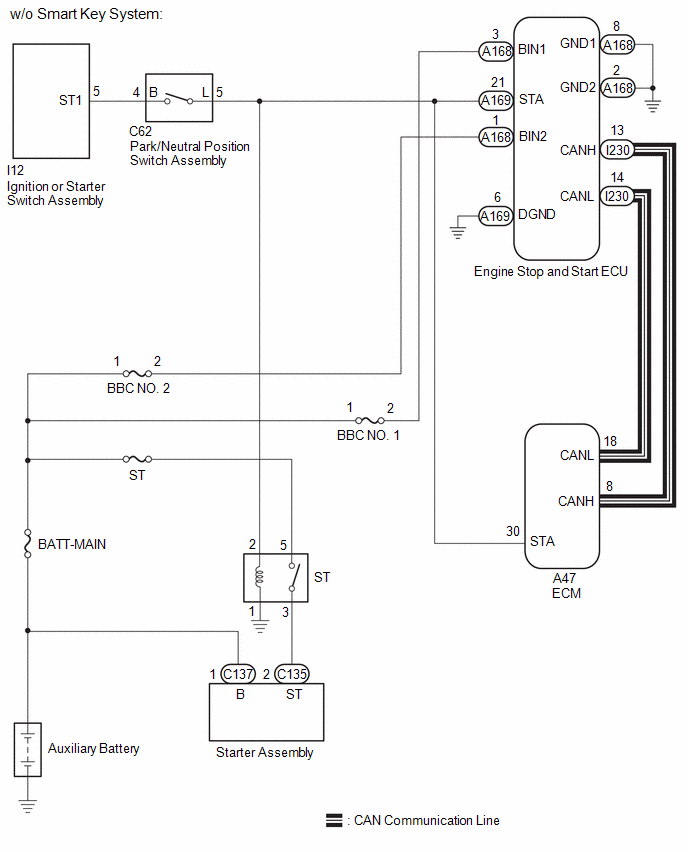

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

• Before replacing the engine stop and start ECU, read the number of starter operations and write it into a new engine stop and start ECU.

  Click here

• After replacing the engine stop and start ECU or air conditioning amplifier assembly, reset and perform learning of the air conditioning information in the engine stop and start ECU.

  Click here

• After replacing the engine stop and start ECU assembly, perform learning of the external backup boost converter (eco run vehicle converter assembly).

  Click here

• Inspect the fuses for circuits related to this system before performing the following procedure.
• When the engine stop and start ECU or oil pump with motor assembly is replaced, check the oil pump with motor assembly.

  Click here

HINT:

• Using the GTS, read the Freeze Frame Data before troubleshooting. System condition information is recorded as Freeze Frame Data the moment a DTC is stored. This information can be useful when troubleshooting.

  Click here

• DTCs for the stop and start system are not cleared even if the malfunction has been repaired. After repairing the malfunction, be sure to clear the DTCs.

PROCEDURE

(a) Disconnect the A168 engine stop and start ECU connector.

(b) Remove the BBC NO. 1 and BBC NO. 2 fuses from the No. 1 engine room relay block.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

(a) Disconnect the A168 and A169 engine stop and start ECU connectors.

(b) Remove the ST relay from the No. 1 engine room relay block.

(c) Remove the BBC NO. 1 and BBC NO. 2 fuses from the No. 1 engine room relay block.

(d) Disconnect the I223 certification ECU (smart key ECU assembly) connector. (w/ Smart Key System)

(e) Disconnect the C62 park/neutral position switch assembly connector.

(f) Disconnect the A47 ECM connector.

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

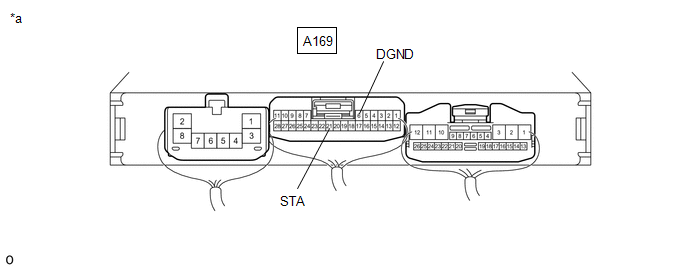

(a) Disconnect the engine stop and start ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG

REPLACE ENGINE STOP AND START ECU

OK

Click here

OK

USE SIMULATION METHOD TO CHECK

NG

REPLACE RELAY (ST RELAY)
