Toyota Corolla Cross: Starter Circuit Short to Ground (B227511,B227512)

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Smart Key System (for Start Function, Hev Model) / Starter Circuit Short to Ground (B227511,B227512)

DESCRIPTION

This DTC is stored when a malfunction is detected in the starter circuit inside the certification ECU (smart key ECU assembly).

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Note

B227511

Starter Circuit Short to Ground

Certification ECU (smart key ECU assembly) internal HV activation request output circuit malfunction or external circuit malfunction (1-trip detection logic*)
  • Certification ECU (smart key ECU assembly)
  • Hybrid vehicle control ECU
  • Wire harness or connector
DTC Output Confirmation Operation:
  • Turn the ignition switch to ON and wait 10 seconds or more, then start the hybrid control system 3 times.

B227512

Starter Circuit Short to Battery

Certification ECU (smart key ECU assembly) internal HV activation request output circuit malfunction or external circuit malfunction (1-trip detection logic*)
  • Certification ECU (smart key ECU assembly)
  • Hybrid vehicle control ECU
  • Wire harness or connector
DTC Output Confirmation Operation:
  • Turn the ignition switch to ON and wait 10 seconds or more, then start the hybrid control system 3 times.
  • *: Only detected while a malfunction is present and the ignition switch is ON.
Vehicle Condition and Fail-safe Function when Malfunction Detected

Vehicle Condition when Malfunction Detected

Fail-safe Function when Malfunction Detected
  • The power source mode changes to ON (READY) even though the hybrid control system is not started.
  • The power source mode does not change to ON (READY) even though the hybrid control system is started.

-
Related Data List and Active Test Items

DTC No.

Data List and Active Test

B227511

B227512

-

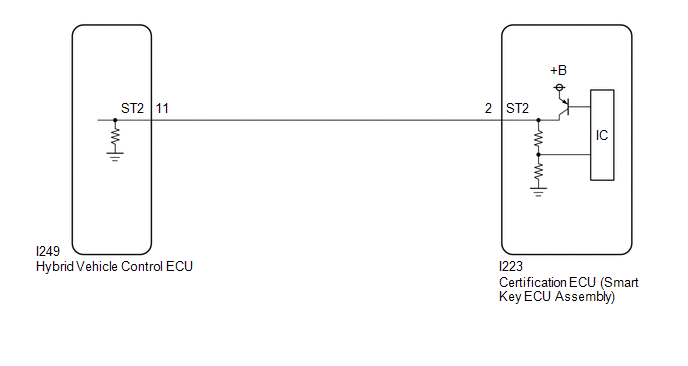

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins.

    Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Start Key(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

  • The smart key system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Start Function) after confirming that the communication systems are functioning properly.

    Click here

  • Before replacing the hybrid vehicle control ECU or certification ECU (smart key ECU assembly), refer to Registration.

    Click here

  • After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

1.

CHECK FOR DTC

(a) Turn the ignition switch to ON and wait 25 seconds.

(b) Using the GTS, check for certification ECU (smart key ECU assembly) DTCs.

Body Electrical > Power Source Control > Trouble Codes

OK:

DTC B228562 is not output simultaneously.

NG

GO TO DTC B228562

OK

2.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - HYBRID VEHICLE CONTROL ECU)

(a) Disconnect the I223 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the I249 hybrid vehicle control ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I223-2 (ST2) - I249-11 (ST2)

Always

Below 1 Ω

I223-2 (ST2) or I249-11 (ST2) - Other terminals and body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

3.

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Connect the I223 certification ECU (smart key ECU assembly) connector.

(b) Connect the I249 hybrid vehicle control ECU connector.

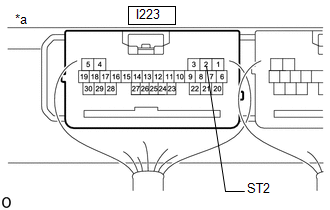

*a

Component with harness connected

(Certification ECU (Smart Key ECU Assembly))

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

I223-2 (ST2) - Body ground

With the brake pedal depressed, the power switch is pressed and held

8.5 V or higher

I223-2 (ST2) - Body ground

After approx. 3 sec. has elapsed, the power switch is released

1 V or less
OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
