Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Door Lock / Door Control Transmitter (w/o Smart Key System) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

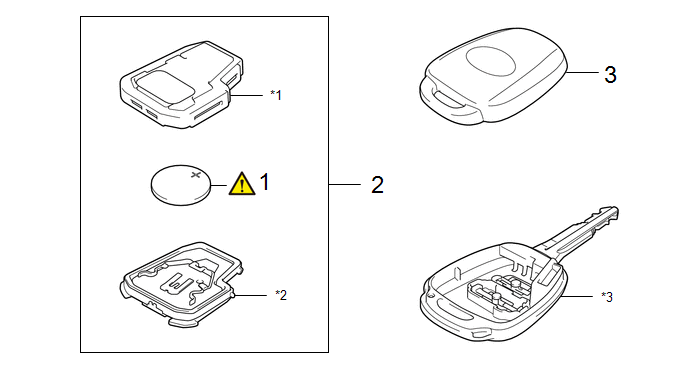

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMITTER BATTERY

89745A

-

-

2

DOOR CONTROL TRANSMITTER SUB-ASSEMBLY

89071C

-

-

-

3

TRANSMITTER HOUSING COVER

89751A

-

-

-

*1

TRANSMITTER BATTERY COVER

*2

TRANSMITTER BATTERY CASE

*3

TRANSMITTER HOUSING CASE

-

-

PROCEDURE

1. INSTALL TRANSMITTER BATTERY

Click here

2. INSTALL DOOR CONTROL TRANSMITTER SUB-ASSEMBLY

3. INSTALL TRANSMITTER HOUSING COVER
