Toyota Corolla Cross: Rough Idling

DESCRIPTION

Problem Symptom	Suspected Area	Trouble Area
Engine speed fluctuation due to abnormal combustion Idle speed too low or high Strong engine vibration due to above symptoms	Ignition malfunction Deviation in air fuel ratio (Excessive or insufficient intake air volume or fuel supply) Insufficient compression Changes in load from another system	Spark plug Ignition coil assembly	Ignition system
		Port fuel injector assembly Direct fuel injector assembly Injector driver (ECM) Fuel pump (for low pressure) Fuel pump assembly (for high pressure) Fuel pump control circuit Fuel line Purge VSV system Fuel quality (existence of foreign matter, degradation)	Fuel system
		EGR system Mass air flow meter sub-assembly Intake system (Air leaks or deposit accumulation) Throttle body with motor assembly Air fuel ratio sensor (sensor 1) Air fuel ratio sensor (sensor 2) Cam timing control motor with EDU assembly Cam timing oil control solenoid assembly Variable Valve Timing system (VVT-iE, VVT-i system)	Intake and exhaust systems
		ECM Wire harness or connector Knock control sensor Engine coolant temperature sensor	Other control systems
		Water inlet with thermostat sub-assembly Engine assembly Engine mount	Engine

HINT:

• If any DTCs are output, perform troubleshooting for the DTCs first.
• Try to reproduce the conditions present when the malfunction occurred.
• Using the GTS, read the Data List to confirm the engine operating conditions. This information can be useful when troubleshooting.
• If the problem symptoms do not recur, attempt to reproduce the symptoms and conditions when the malfunction occurred based on the result of the customer problem analysis. Place the priority on confirming the symptoms.

SYMPTOM AND CAUSE OF SYSTEM MALFUNCTION

HINT:

The following are descriptions of the characteristics of each system malfunction. After understanding the link between the causes and symptoms, perform the inspection of each component. Even if the problem symptom does not recur, signs of the malfunction may be found in the Data List.

(a) Ignition system

Spark plug

Main cause of malfunction	Performance degradation (wear, existence of foreign matter, etc.)
Symptom	Engine speed fluctuation due to abnormal combustion
Data List	Misfire Count Cylinder #1 to #4
HINT: If the spark plug of the malfunctioning cylinder is abnormally wet with fuel, a leaking fuel injector assembly is suspected.

Ignition coil assembly

Main cause of malfunction	Internal malfunction
Problem symptom	Engine speed fluctuation due to abnormal combustion
Data List	Misfire Count Cylinder #1 to #4

(b) Fuel system

Fuel injector assembly

Main cause of malfunction	Blockage
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high
Data List	Short FT B1S1 Long FT B1S1 Total FT Bank 1 Fuel System Status Bank 1 Target Air-Fuel Ratio A/F (O2) Lambda Sensor B1S1 A/F Learn Value Idle (Port) Bank 1 A/F Learn Value Low (Port) Bank 1 A/F Learn Value Mid No.1 (Port) Bank 1 A/F Learn Value Mid No.2 (Port) Bank 1 A/F Learn Value High (Port) Bank 1 A/F Learn Value Idle Bank 1 A/F Learn Value Low Bank 1 A/F Learn Value Mid No.1 Bank 1 A/F Learn Value Mid No.2 Bank 1 A/F Learn Value High Bank 1
HINT: If the engine malfunction disappears when the fuel injection volume is increased or decreased using the Control the Injection Volume, the respective cylinder may be malfunctioning.

Fuel system

HINT: If the air fuel ratio becomes lean only when the engine is running under a high load and at a high engine speed, clogging of the fuel pump or fuel filter is suspected.

Fuel quality

Main cause of malfunction	Fuel degradation due to age or water contamination Low fuel quality Addition of fuel additive
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high Engine is difficult to start

(c) Intake and exhaust systems

EGR system

Main cause of malfunction	EGR valve movement problems or stuck
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high Startability malfunction, lack of power or engine stalls
Data List	EGR Step Position Target EGR Valve Position No.1 Normally, Actual EGR Position = Target EGR Valve Position No. 1 +/-5% (fully closed: 0%, fully open: 100%) When the ignition switch is turned ON, the EGR valve fully closes.

Mass air flow meter sub-assembly

Main cause of malfunction	Performance degradation (existence of foreign matter, etc.)
Problem symptom	Lack of power
Data List	Mass Air Flow Sensor
HINT: If the value of the Data List item "Mass Air Flow Sensor" is abnormal, a malfunction of the mass air flow meter sub-assembly is suspected.

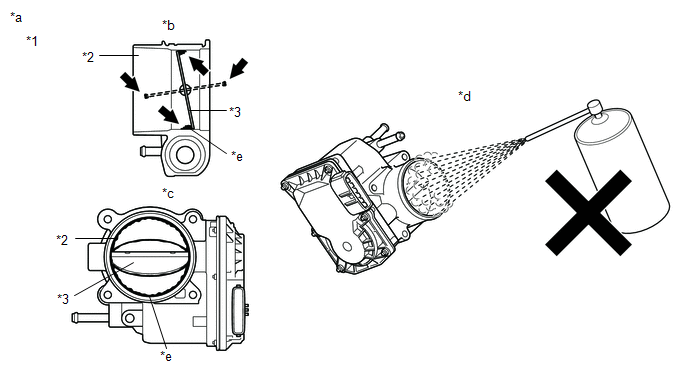

Throttle system

Main cause of malfunction	Inappropriate trim volume adjustment due to accumulation of deposits
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high
Data List	Engine Stall Control F/B Flow ISC Learning Value

Air fuel ratio sensor (sensor 1), Air fuel ratio sensor (sensor 2)

Main cause of malfunction	Deviation in sensor characteristics
Problem symptom	Abnormal combustion due to deviation of actual air fuel ratio from calculated ratio
Data List	A/F (O2) Sensor Voltage B1S1 A/F (O2) Sensor Current B1S2 Fuel System Status Bank 1

(d) Engine

Engine assembly

Main cause of malfunction	Compression loss Accumulation of deposits (Combustion chamber, intake valve or intake manifold)
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high Hesitation during acceleration or stalling
HINT: If deposits have accumulated in the combustion chamber or on an intake valve, the engine may stall when deposits are caught on an intake valve. When performing the Active Test "Check the Cylinder Compression", if the speed of one cylinder is higher than the others, the cylinder may have compression loss. If deposits accumulate on the intake valves, the supply of fuel may be delayed due to adherence of the fuel to the deposits, causing a rough idle.

DATA LIST ITEMS RELATED TO ROUGH IDLING

HINT:

Depending on the vehicle model, the applicable Data List items may vary. Data List items other than the ones used in the diagnostic procedure are for reference only.

• Mass Air Flow Sensor
• Engine Stall Control F/B Flow
• Target Air-Fuel Ratio
• A/F (O2) Sensor Current B1S1
• A/F (O2) Sensor Current B1S2
• Short FT B1S1
• Long FT B1S1
• Total FT Bank 1
• Fuel System Status Bank 1
• Target EGR Valve Position No.1
• EGR Step Position
• A/F Learn Value Idle (Port) Bank 1
• A/F Learn Value Low (Port) Bank 1
• A/F Learn Value Mid No.1 (Port) Bank 1
• A/F Learn Value Mid No.2 (Port) Bank 1
• A/F Learn Value High (Port) Bank 1
• A/F Learn Value Idle Bank 1
• A/F Learn Value Low Bank 1
• A/F Learn Value Mid No.1 Bank 1
• A/F Learn Value Mid No.2 Bank 1
• A/F Learn Value High Bank 1
• Misfire Count Cylinder #1 to #4
• ISC Learning Value
• Fuel Pressure (High)
• Fuel Pressure (Low) / Fuel Pressure 2
• High Pressure Fuel Pump Duty Ratio (D4)
• Fuel Pump Control Duty Ratio
• Target Fuel Pressure (High)
• Target Fuel Pressure (Low) / Target Fuel Pressure 2
• High Pressure Fuel Pump Discharge Rate

PROCEDURE

1.	INTERVIEW THE CUSTOMER

(a) Interview the customer for details about the conditions when the rough idle occurred.

HINT:

Depending on the conditions when the rough idle occurred, a malfunction in one of the following areas is suspected.

Problem Symptom	Suspected Area
Engine runs rough, particularly when idling after a coil start. Engine runs less rough when the engine speed is increased	Possibly caused by excessive EGR due to insufficient closing of the EGR valve
Hesitation or lack of power occurs during acceleration, regardless of whether engine is cold or warm	For low mileage vehicles (ODO reading of less than approximately 20000 km (12428 miles) or yearly mileage of less than 2000 km (1243 miles)): Fuel quality (degradation, water contamination, etc.) For high mileage vehicles (ODO reading of more than approximately 150000 km (93210 miles)): Excessively lean air fuel ratio during acceleration due to deposits in intake system or combustion chamber caught temporarily on intake or exhaust valve or adherence of fuel to the deposits Abnormal mass air flow meter sub-assembly output due to existence of foreign matter Decrease in fuel injector assembly injection volume due to low quality fuel
Engine stalls or is difficult to start immediately after engine stalled, regardless of whether engine is cold or warm	Deposits in intake system or combustion chamber caught temporarily on intake or exhaust valve

NEXT

2.	CHECK DTC OUTPUT

(a) Perform a road test.

(b) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTCs are not output	A
DTC is output	B

B

GO TO DTC CHART

A

3.	SYMPTOM CONFIRMATION

(a) Check if the problem symptoms reported in the customer problem analysis recur.

HINT:

If the problem symptoms do not recur, attempt to reproduce the conditions when the malfunction occurred based on the result of the customer problem analysis.

Result	Proceed to
The problem symptom recurs	A
The problem symptom does not recur (occurred in the past)	B

B

CHECK FOR INTERMITTENT PROBLEMS

A

4.	READ VALUE USING GTS (ISC LEARNING VALUE)

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display
ISC Learning Value

(b) According to the display on the GTS, read the Data List.

Result	Proceed to
-7 to 15 Nm	A
Other than above	B

B

GO TO STEP 18

A

5.	READ VALUE USING GTS (SHORT FT B1S1 AND LONG FT B1S1)

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display
Short FT B1S1
Long FT B1S1

(b) According to the display on the GTS, read the Data List.

Data List	Result	Proceed to
Short FT B1S1 + Long FT B1S1	-20% or higher, or less than 20%	A
	Other than above	B

HINT:

• "Total FT Bank 1" is used to detect an abnormal air fuel ratio. As the value of "Total FT Bank 1" is corrected by the ECM before it is displayed in the Data List, the displayed value may not be equal to the sum of the measured "Short FT B1S1" and "Long FT B1S1".
• An abnormally lean or rich tendency can be checked by reading the following Data List items: A/F Learn Value Idle (Port) Bank 1, A/F Learn Value Low (Port) Bank 1, A/F Learn Value Mid No.1 (Port) Bank 1, A/F Learn Value Mid No.2 (Port) Bank 1, A/F Learn Value High (Port) Bank 1, A/F Learn Value Idle Bank 1, A/F Learn Value Low Bank 1, A/F Learn Value Mid No.1 Bank 1, A/F Learn Value Mid No.2 Bank 1 and A/F Learn Value High Bank 1. (For vehicles equipped with a V type engine, check that both banks have the same correction tendency. If the correction of either bank is -20% or less or +20% or more, the air fuel ratio sensor (sensor 1) or air fuel ratio sensor (sensor 2) of that bank may be malfunctioning.)
• The following may cause a lean air fuel ratio (an operating range in which the air fuel ratio learned value correction is +20% or more):
  1. Decrease in fuel injector assembly injection volume
  2. Decrease in mass air flow meter sub-assembly output (due to existence of foreign matter)
  3. Air leaks in intake system after mass air flow meter sub-assembly
  4. Decrease in fuel pressure (at fuel filter, fuel pump, fuel main valve assembly or fuel suction plate sub-assembly)
• On vehicles which the learning value for each operating range can be checked, if the value of "A/F Learn Value High (Port) Bank 1" or "A/F Learn Value High Bank 1" only is corrected to the positive side, a malfunction in the fuel system (clogging of the fuel pump or fuel filter) is suspected.
• On vehicles which the learning value for each operating range can be checked, if the value of "A/F Learn Value Idle (Port) Bank 1", "A/F Learn Value Low (Port) Bank1", "A/F Learn Value Idle Bank 1" or "A/F Learn Value Low Bank 1" only is corrected to the positive side, an air leak after the mass air flow meter sub-assembly is suspected.
• If the air fuel ratio becomes lean only when the engine is running under a high load and at a high engine speed, clogging of the fuel filter is suspected.
• The following may cause a rich air fuel ratio (an operating range in which the air fuel ratio learned value correction is -20% or less):
  1. Increase in the fuel injector assembly injection volume
  2. Purge VSV system

B

GO TO STEP 15

A

6.	PERFORM ACTIVE TEST USING GTS (D-4S (FUEL CUT))

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(b) Start the engine.

HINT:

Reproduce the vehicle conditions when the malfunction occurred (such as after the engine is warmed up or after a cold start).

(c) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display
D-4S (Fuel Cut)

Data List Display
Engine Speed

(d) According to the display on the GTS, perform the Active Test and check for a malfunctioning cylinder.

HINT:

• Perform fuel-cut for each cylinder and check the change in the engine speed.
• If the engine speed of a cylinder does not change while performing the Active Test, it can be determined that the cylinder is malfunctioning.
• If the engine speed of all cylinders change while performing the Active Test, it can be determined that multiple cylinders are malfunctioning.
• A cylinder for which the Data List items "Misfire Count Cylinder #1 to #4" increases may be malfunctioning.

Result	Proceed to
One cylinder is malfunctioning	A
Multiple or all cylinders are malfunctioning, or the malfunctioning cylinder cannot be determined.	B

B

GO TO STEP 13

A

7.	PERFORM ACTIVE TEST USING GTS (CHECK THE CYLINDER COMPRESSION)

NOTICE:

Use a fully-charged HV battery.

HINT:

If the vehicle does not support the Active Test Check the Cylinder Compression, measure the compression pressure. If the compression pressure is normal, go to step 8 (PERFORM ACTIVE TEST USING GTS (D-4S (INJECTION VOLUME)).

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

HINT:

Do not start the engine.

(d) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display
Check the Cylinder Compression

Data List Display
Engine Speed Cylinder #1
Engine Speed Cylinder #2
Engine Speed Cylinder #3
Engine Speed Cylinder #4
Average Engine Speed of All Cylinder

HINT:

To display the entire Data List, press the pull down menu button next to Primary. Then select Compression.

(e) Push the snapshot button to turn the snapshot function on.

HINT:

Using the snapshot function, data can be recorded while performing the Active Test.

(f) While the engine is not running, press the Active button to change Check the Cylinder Compression to "Start".

HINT:

After performing the above procedure, Check the Cylinder Compression will start. Fuel injection for all cylinders is prohibited and each cylinder engine speed measurement enters standby mode.

(g) Crank the engine.

HINT:

Continue to crank the engine until the values change from the default value (51199 rpm).

(h) Monitor the engine speed (Engine Speed Cylinder #1 to #4 and Average Engine Speed of All Cylinder) displayed on the GTS.

NOTICE:

• If the Check the Cylinder Compression Active Test needs to be performed after it is changed to "Start" and performed once, press the Exit button to return to the Active Test menu screen. Then perform the Check the Cylinder Compression Active Test again.
• As soon as the measurements are obtained, stop the Active Test.

HINT:

• At first, the GTS display will show each cylinder's engine speed measurement to be extremely high. After the engine has started, each cylinder's engine speed measurement will change to the actual engine speed.
• If the cylinder engine speed values (Engine Speed Cylinder #1 to #4) displayed in the Data List do not change from an extremely high value, return to the Active Test menu screen, change "Check the Cylinder Compression" to "Start" and crank the engine again within 1 second.

(i) Stop the engine and change the Active Test "Check the Cylinder Compression" to "Stop" after the engine stops.

NOTICE:

• When performing the Active Test, DTC may be stored.
• After performing the Active Test, make sure to check and clear the DTCs.

(j) Push the snapshot button to turn the snapshot function off.

(k) Read the value.

HINT:

• If the value of Data List item "Engine Speed Cylinder" of a cylinder is higher than other cylinders, the cylinder may be malfunctioning.
• If the value of Data List item "Engine Speed Cylinder" is high for only one cylinder, compression loss is suspected.

Result	Proceed to
There is no variation in "Engine Speed Cylinder" (All cylinders display approximately the same value for "Engine Speed of Cylinder")	A
There is variation in "Engine Speed Cylinder" (Only one cylinder displays a value for "Engine Speed of Cylinder" that differs considerably)	B

B

GO TO STEP 12

A

8.	PERFORM ACTIVE TEST USING GTS (D-4S (INJECTION VOLUME))

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(b) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with the A/C switch and all accessories off.

(c) Idle the engine.

(d) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display
D-4S (Injection Volume)

Data List Display
Coolant Temperature

(e) According to the display on the GTS, perform the Active Test and check the vehicle conditions when increasing and decreasing the fuel injection volume.

HINT:

• Increase and decrease the fuel injection volume of the port injection and direct injection simultaneously and check the vehicle condition.
• Change the fuel injection volume between the minimum and maximum range of correction (e.g. -12.5% to 24.8%).

Result	Proceed to
Malfunction is still present even if the fuel injection volume is changed	A
Malfunction disappears when the fuel injection volume is changed	B

B

GO TO STEP 11

A

9.	CHECK IGNITION SYSTEM

(a) Check the ignition system.

Click here

HINT:

• Interchange the ignition coil assembly and spark plug of the malfunctioning cylinder with those of a known good cylinder and check if the malfunctioning cylinder returns to normal.
• If the spark plug of the malfunctioning cylinder is abnormally wet with fuel even after the ignition coil assembly and spark plug are replaced, a leaking fuel injector assembly is suspected.

Result	Proceed to
The malfunctioning cylinder does not return to normal	A
The malfunctioning cylinder returned to normal	B

B

GO TO STEP 23

A

10.	INSPECT OTHER RELATED COMPONENTS

(a) Check the power source circuit, wire harness and connectors.

NEXT

GO TO STEP 23

11.	REPLACE FUEL INJECTOR ASSEMBLY

(a) Replace the fuel injector assembly of the malfunctioning cylinder.

HINT:

• If the air fuel ratio learned value is corrected to the positive side for all operating ranges due to low fuel injector assembly injection volume, replace the fuel injector assemblies of all cylinders.
• If the symptoms tend to improve by decreasing the fuel injection amount, the engine misfire may be due to blockage of an EGR port leading to EGR becoming excessive to the cylinders with little EGR port blockage.
• Perform "Inspection After Repair" after replacing the fuel injector assembly.

  Click here

NEXT

GO TO STEP 24

12.	CHECK CYLINDER COMPRESSION PRESSURE

(a) Measure the cylinder compression pressure. If the compression pressure of a cylinder is low, inspect the engine assembly and repair or replace parts as necessary.

Click here

NEXT

GO TO STEP 23

13.	PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(b) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.

(c) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display
Control the EGR Step Position

Data List Display
Intake Manifold Absolute Pressure
Coolant Temperature
Engine Independent

(d) Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:

• Make sure that the value of Data List item Engine Independent is "Operate" while performing the Active Test.
• Do not leave the EGR valve open for 10 seconds or more during the Active Test.
• Be sure to return the EGR valve to step 0 when the Active Test is completed.
• Do not open the EGR valve 30 steps or more during the Active Test.

Result	Proceed to
Intake Manifold Absolute Pressure increases by less than 10 kPa (1.45 psi) when the EGR valve is fully closed (0 step)	A
Intake Manifold Absolute Pressure increases by 10 kPa (1.45 psi) or higher when the EGR valve is fully closed (0 step)	B

HINT:

• If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).
• While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.
• Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.

B

GO TO STEP 15

A

14.	REPLACE EGR VALVE ASSEMBLY

(a) Replace the EGR valve assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click here

NEXT

GO TO STEP 24

15.	READ VALUE USING GTS (MASS AIR FLOW SENSOR)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(b) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with the A/C switch and all accessories off.

(c) Enter the following menus.

Powertrain > Engine > Data List

Tester Display
Engine Speed
Mass Air Flow Sensor
Coolant Temperature

(d) According to the display on the GTS, read the Data List when the engine is running.

HINT:

During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, read the Data List after charge control has completed.

Result	Proceed to
Other than below	A
Engine speed 2500 rpm (without load): Less than 6.5 gm/sec	B

B

GO TO STEP 22

A

16.	PERFORM ACTIVE TEST USING GTS (D-4S (INJECTION VOLUME))

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(b) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

(c) Idle the engine for 5 minutes or more with the shift lever in P.

(d) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display
D-4S (Injection Volume)

Data List Display
Coolant Temperature
A/F (O2) Sensor Current B1S1
A/F (O2) Sensor Current B1S2

(e) According to the display on the GTS, perform the Active Test and check the vehicle conditions when increasing and decreasing the fuel injection volume.

NOTICE:

• The air fuel ratio sensor (sensor 1) has an output delay of a few seconds and the air fuel ratio sensor (sensor 2) has a maximum output delay of approximately 20 seconds.
• Read the output value immediately after warming up the air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2) to avoid an inaccurate reading due to a sensor cooling.

HINT:

• Increase and decrease the fuel injection volume of the port injection and direct injection simultaneously and check the vehicle condition.
• The Active Test "Control the Injection Volume for A/F Sensor" can be used to lower the fuel injection volume by 12.5% or increase the injection volume by 12.5%.

Standard:

GTS Display (Sensor)	Injection Volume	Value
A/F (O2) Sensor Current B1S1 (Air fuel ratio (sensor 1))	12.5%	Below -0.075 mA
	-12.5%	Higher than 0.037 mA
A/F (O2) Sensor Current B1S2 (Air fuel ratio (sensor 2))	12.5%	Below -0.86 mA
	-12.5%	Higher than 0.33 mA

Result	Proceed to
Output values are abnormal	A
Malfunction disappears when fuel injection volume is increased	B
Malfunction is still present when fuel injection volume is increased, even if output values are normal	C

B

GO TO STEP 20

C

GO TO STEP 21

A

17.	REPLACE AIR FUEL RATIO SENSOR (SENSOR 1) AND AIR FUEL RATIO SENSOR (SENSOR 2)

(a) Replace the air fuel ratio sensor (sensor 1).

Click here

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor (sensor 1).

Click here

(b) Replace the air fuel ratio sensor (sensor 2).

Click here

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor (sensor 2).

Click here

NEXT

GO TO STEP 24

18.	REMOVE FOREIGN MATTER (CLEAN THROTTLE BODY WITH MOTOR ASSEMBLY)

(a) Clean off any deposits inside of the throttle body with motor assembly.

(b) Push open the throttle valve and wipe off any deposits from the valve and bore using a piece of cloth soaked in non-residue solvent.

*1	Throttle Body with Motor Assembly	*2	Bore
*3	Throttle Valve	-	-
*a	Reference	*b	Throttle Body with Motor Assembly Cross-section Diagram
*c	When valve fully opened	*d	Do not directly apply cleaner
*e	Deposits	-	-

NOTICE:

• Make sure that the cloth or your fingers do not get caught in the valve.
• Make sure that foreign matter does not enter the throttle valve.
• Do not directly apply non-residue solvent to the throttle body with motor assembly or wash the throttle body with motor assembly. Non-residue solvent may leak into the motor from the shaft and cause problems such as rust or valve movement problems.
• If there is coating material on the edge of the throttle valve, be careful not to remove it.

HINT:

The illustration is for reference only, actual parts may differ.

NEXT

19.	PERFORM CONFIRMATION DRIVING PATTERN

(a) Perform "Inspection After Repair" after cleaning the throttle body with motor assembly.

Click here

(b) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(c) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

(d) Allow the engine to idle for 3 minutes or more and confirm that the engine speed is within the specified range.

HINT:

If the engine is operated without performing learning value reset and idle learning after cleaning the deposits from the throttle body with motor assembly, the idle speed may increase.

NEXT

GO TO STEP 24

20.	REPLACE FUEL INJECTOR ASSEMBLY

(a) Replace the fuel injector assemblies of all cylinders.

HINT:

Perform "Inspection After Repair" after replacing the fuel injector assembly.

Click here

NEXT

GO TO STEP 24

21.	INSPECT OTHER RELATED COMPONENTS

(a) Inspect other related components.

HINT:

If the malfunctioning part could not be determined by performing the preceding inspections, one of the following malfunctions is suspected.

• Engine mount deterioration
• Deposits in the intake manifold or on an intake valve
• EGR distribution is poor due to EGR port blockage
• Delay in fuel supply due to adherence of the fuel to the deposits

NEXT

GO TO STEP 23

22.	CHECK INTAKE SYSTEM

(a) Check for air leaks or blockage in the intake system components. If a connection problem or foreign matter is found, repair the connection or remove the foreign matter.

Click here

HINT:

• If there is foreign matter in the intake system components, remove it before proceeding to the next step.
• If there is no foreign matter in the intake system components, check for foreign matter in the mass air flow meter sub-assembly. If there is foreign matter in the mass air flow meter sub-assembly, remove it.

  Click here

NEXT

23.	REPAIR OR REPLACE MALFUNCTIONING PART

(a) Repair or replace the malfunctioning part.

(b) Perform "Inspection After Repair" after repairing or replacing the malfunctioning part.

Click here

NEXT

24.	CONDUCT CONFIRMATION TEST

(a) Check that the idle has returned to normal.

NEXT

END

READ NEXT:
