Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Mirror (int) / Inner Rear View Mirror (w/ Ec Mirror) / Removal

REMOVAL

CAUTION / NOTICE / HINT

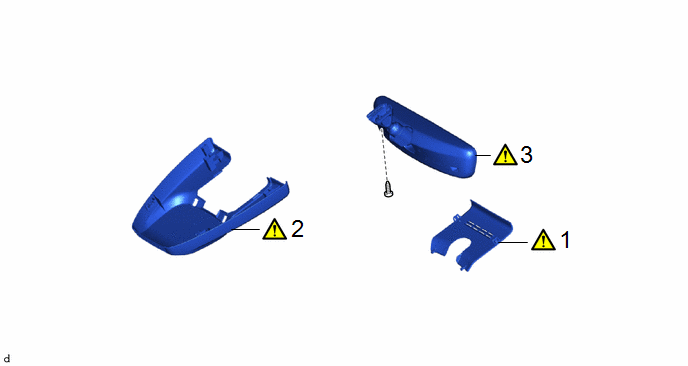

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 2 FORWARD RECOGNITION COVER

86466E

-

-

2

NO. 1 FORWARD RECOGNITION COVER

86466D

-

-

3

INNER REAR VIEW MIRROR ASSEMBLY

87810

-

-

PROCEDURE

1. REMOVE NO. 2 FORWARD RECOGNITION COVER

Click here

2. REMOVE NO. 1 FORWARD RECOGNITION COVER

Click here

3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

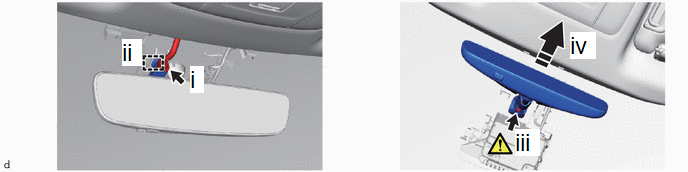

Remove in this Direction

-

-

(1) Disconnect the connector.

(2) Disengage the clamp.

(3) Using a T20 "TORX" socket wrench, remove the screw.

(4) Remove the inner rear view mirror assembly as shown in the illustration.
