Toyota Corolla Cross: Inspection
INSPECTION
PROCEDURE
1. INSPECT INNER REAR VIEW MIRROR ASSEMBLY

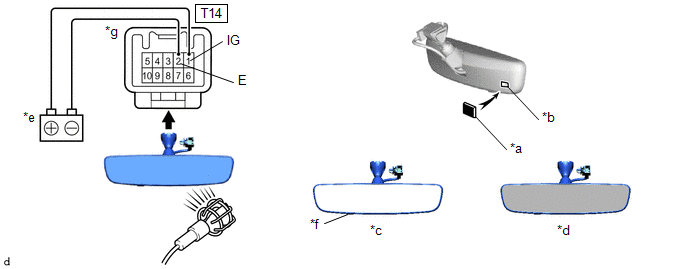

(a) Inspect the operation of the inner rear view mirror assembly.
|
*a | Black Colored Tape |
*b | Forward Sensor |
|
*c | Bright |
*d | Dark |
|
*e | Auxiliary Battery |
*f | EC Switch |
|
*g | Component without harness connected (Inner Rear View Mirror Assembly) |
- | - |
(1) Connect a positive (+) lead from the auxiliary battery to T14-1 (IG) and a negative (-) lead to T14-2 (E).
(2) Press the EC switch.
(3) Install the black colored tape to the forward sensor to prevent it from sensing.
(4) Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.
OK:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
T14-1 (IG) - Auxiliary battery positive (+) T14-2 (E) - Auxiliary battery positive (-) |
Light up the mirror with an electric light |
Inner rear view mirror surface Bright → Dark |
If the result is not as specified, replace the inner rear view mirror assembly.
