Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Mirror (int) / Inner Rear View Mirror (w/ Ec Mirror) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

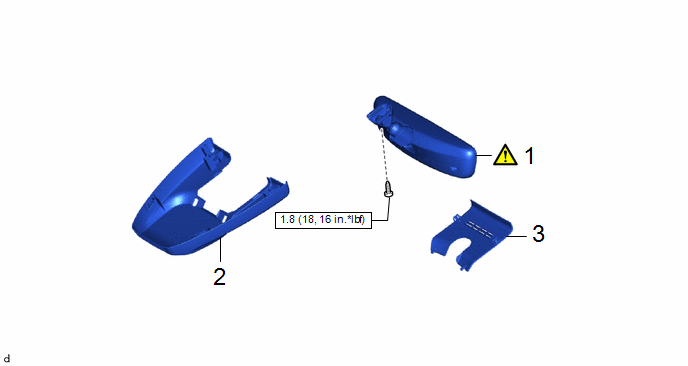

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

INNER REAR VIEW MIRROR ASSEMBLY

87810

-

-

2

NO. 1 FORWARD RECOGNITION COVER

86466D

-

-

-

3

NO. 2 FORWARD RECOGNITION COVER

86466E

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

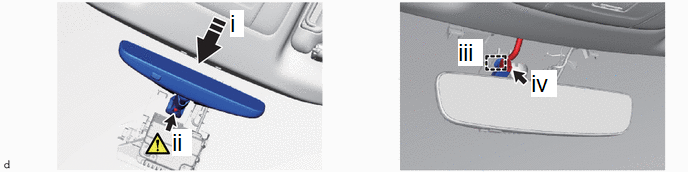

Install in this Direction

-

-

(1) Install the inner rear view mirror assembly as shown in the illustration.

(2) Using a T20 "TORX" socket wrench, install the screw.

Torque:

1.8 N·m {18 kgf·cm, 16 in·lbf}

(3) Engage the clamp.

(4) Connect the connector.

2. INSTALL NO. 1 FORWARD RECOGNITION COVER

3. INSTALL NO. 2 FORWARD RECOGNITION COVER
