Toyota Corolla Cross: Inner Rear View Mirror (w/o Ec Mirror)
Removal
REMOVAL
CAUTION / NOTICE / HINT

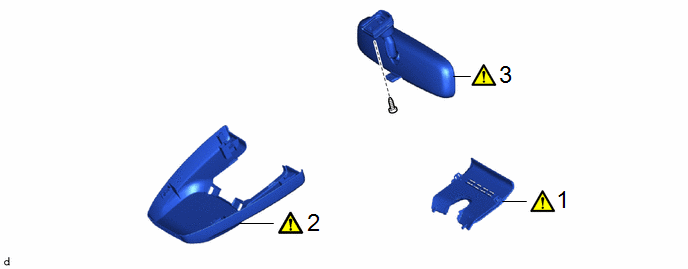

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | NO. 2 FORWARD RECOGNITION COVER |
86466E |
|
- | - |
|
2 | NO. 1 FORWARD RECOGNITION COVER |
86466D |
|
- | - |
|
3 | INNER REAR VIEW MIRROR ASSEMBLY |
87810 |
|
- | - |
.gif)
PROCEDURE
1. REMOVE NO. 2 FORWARD RECOGNITION COVER
|
|
Click here |
2. REMOVE NO. 1 FORWARD RECOGNITION COVER
|
|
Click here |
3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

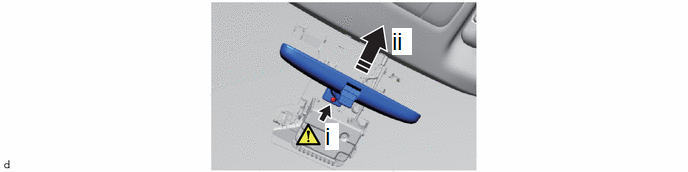

.png) |
Remove in this Direction |
- | - |
(1) Using a T20 "TORX" socket wrench, remove the screw.
(2) Remove the inner rear view mirror assembly as shown in the illustration.
Installation
INSTALLATION
CAUTION / NOTICE / HINT

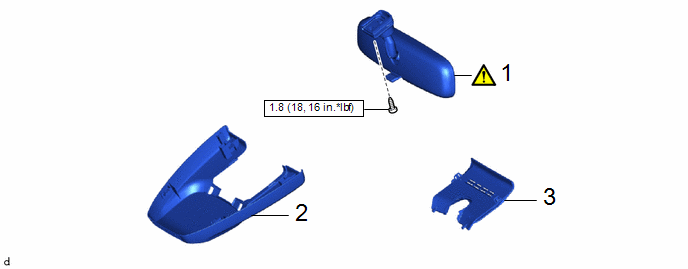

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | INNER REAR VIEW MIRROR ASSEMBLY |
87810 |
|
- | - |
|
2 | NO. 1 FORWARD RECOGNITION COVER |
86466D | - |
- | - |
|
3 | NO. 2 FORWARD RECOGNITION COVER |
86466E | - |
- | - |
.gif)
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
PROCEDURE
1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

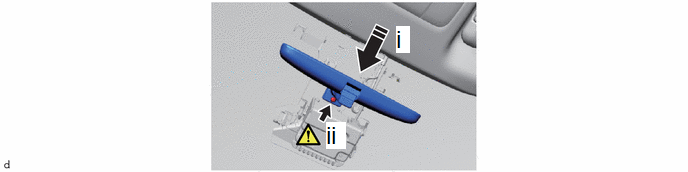

.png) |
Install in this Direction |
- | - |
(1) Install the inner rear view mirror assembly as shown in the illustration.
(2) Using a T20 "TORX" socket wrench, install the screw.
Torque:
1.8 N·m {18 kgf·cm, 16 in·lbf}
2. INSTALL NO. 1 FORWARD RECOGNITION COVER
3. INSTALL NO. 2 FORWARD RECOGNITION COVER
