Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

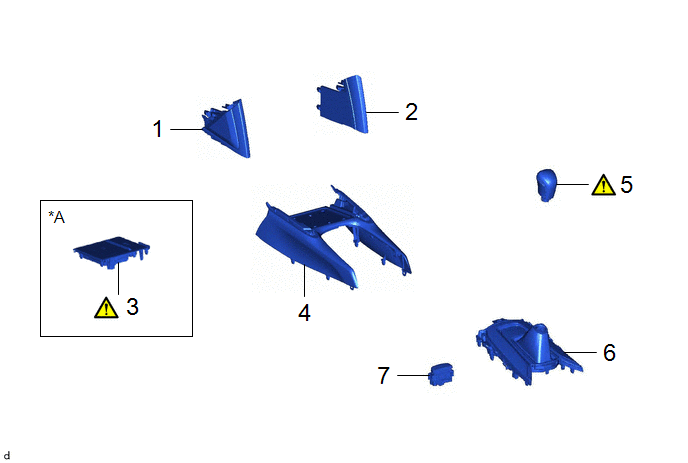

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 2 CONSOLE UPPER PANEL GARNISH

58834B

-

-

-

2

NO. 1 CONSOLE UPPER PANEL GARNISH

58833B

-

-

-

3

MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

-

-

-

4

FRONT CONSOLE UPPER PANEL GARNISH

58831A

-

-

-

5

SHIFT LEVER KNOB SUB-ASSEMBLY

33504F

-

-

6

POSITION INDICATOR HOUSING ASSEMBLY

35970F

-

-

-

7

COMBINATION SWITCH ASSEMBLY

84970

-

-

-

*A

w/ Wireless Charger

-

-

PROCEDURE

1. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

Click here

2. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

(a) Use the same procedure as for the No. 2 console upper panel garnish.

3. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

Click here

4. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click here

5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

  • for CVT:

    Click here

  • for HEV Model:

    Click here

6. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

Click here

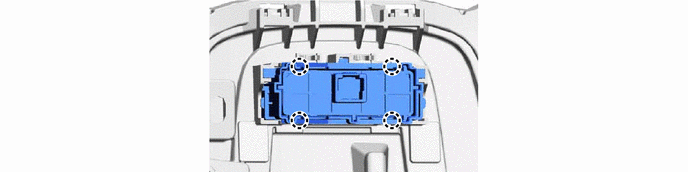

7. REMOVE COMBINATION SWITCH ASSEMBLY
