Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Interior Panels / Trim / Combination Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

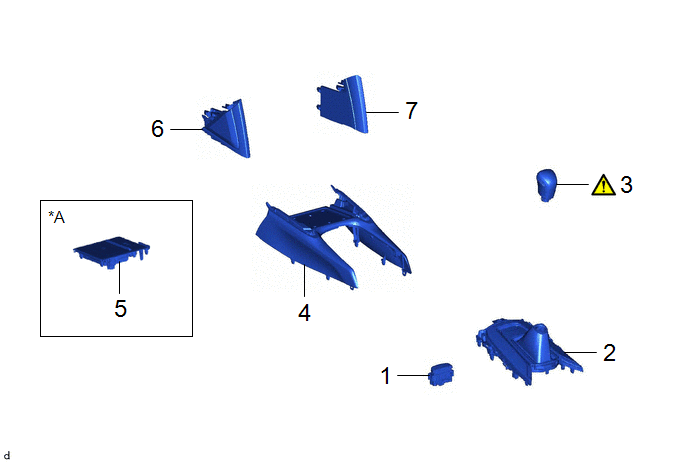

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

COMBINATION SWITCH ASSEMBLY

84970

-

-

-

2

POSITION INDICATOR HOUSING ASSEMBLY

35970F

-

-

-

3

SHIFT LEVER KNOB SUB-ASSEMBLY

33504F

-

-

4

FRONT CONSOLE UPPER PANEL GARNISH

58831A

-

-

-

5

MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

-

-

-

-

6

NO. 2 CONSOLE UPPER PANEL GARNISH

58834B

-

-

-

7

NO. 1 CONSOLE UPPER PANEL GARNISH

58833B

-

-

-

*A

w/ Wireless Charger

-

-

PROCEDURE

1. INSTALL COMBINATION SWITCH ASSEMBLY

2. INSTALL POSITION INDICATOR HOUSING ASSEMBLY

3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

  • for CVT:

    Click here

  • for HEV Model:

    Click here

4. INSTALL FRONT CONSOLE UPPER PANEL GARNISH

5. INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

6. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH

7. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
