Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

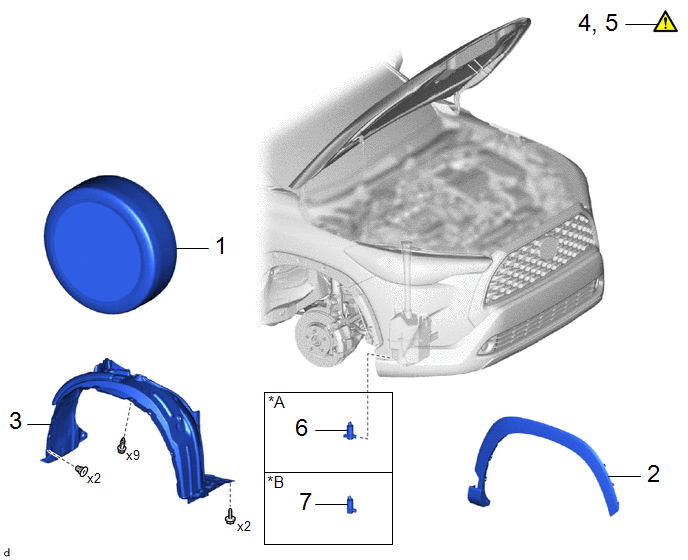

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT WHEEL RH |
- | - |
- | - |
|
2 | FRONT FENDER MOULDING SUB-ASSEMBLY RH |
75601A | - |
- | - |
|
3 | FRONT FENDER LINER RH |
53875A | - |
- | - |
|
4 | DRAIN WASHER FLUID |
- |
|
- | - |
|
5 | DRAIN WASHER FLUID |
- |
|
- | - |
|
6 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
85310 | - |
- | - |
|
7 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
85310 | - |
- | - |
|
*A | w/ Rear Wiper |
*B | w/o Rear Wiper |
PROCEDURE
1. REMOVE FRONT WHEEL RH
Click here .gif)
2. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH
(a) Use the same procedure as for the LH side.
Click here

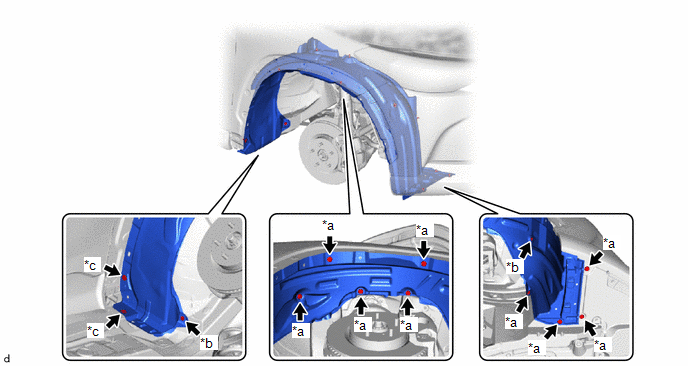

3. REMOVE FRONT FENDER LINER RH
|
*a | Clip |
*b | Screw |
|
*c | Grommet |
- | - |

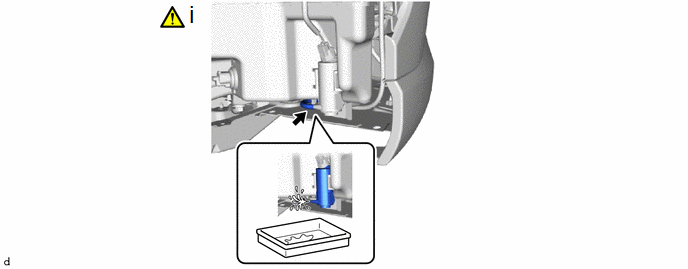

4. DRAIN WASHER FLUID (w/ Rear Wiper)
(1) Disconnect the rear washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.
HINT:
Use a container to collect the washer fluid.

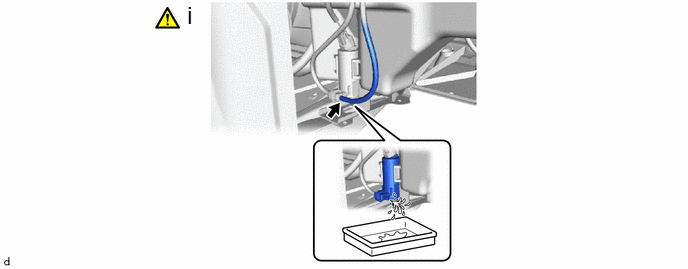

5. DRAIN WASHER FLUID (w/o Rear Wiper)
(1) Disconnect the rear washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.
HINT:
Use a container to collect the washer fluid.

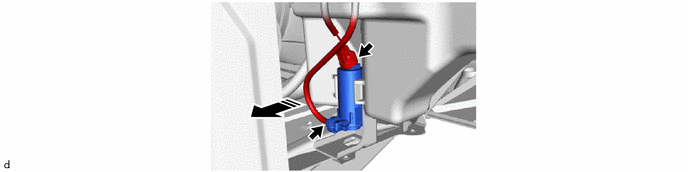

6. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (w/ Rear Wiper)
.png) |
Remove in this Direction |
- | - |

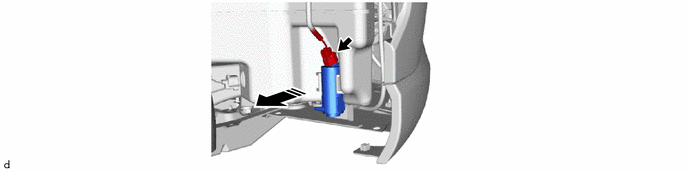

7. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (w/o Rear Wiper)
|
|
Remove in this Direction |
- | - |
