Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Rear Light Assembly / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

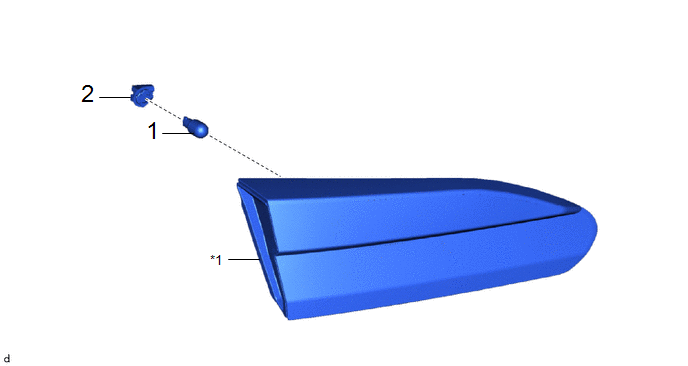

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

BACK UP LIGHT BULB

81550N

-

-

-

2

BACK UP LIGHT SOCKET

-

-

-

-

*1

REAR LIGHT LENS AND BODY

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL BACK UP LIGHT BULB

2. INSTALL BACK UP LIGHT SOCKET
