Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Lighting (ext) / Rear Light Assembly / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

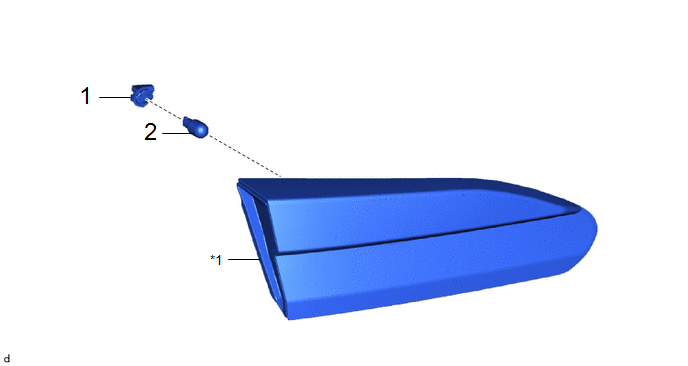

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

BACK UP LIGHT SOCKET

-

-

-

-

2

BACK UP LIGHT BULB

81550N

-

-

-

*1

REAR LIGHT LENS AND BODY

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

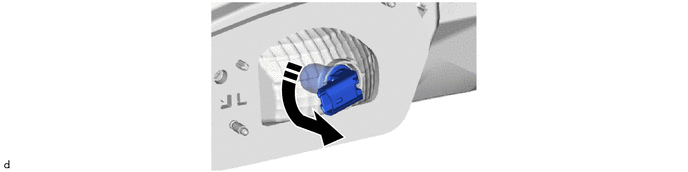

1. REMOVE BACK UP LIGHT SOCKET

Remove in this Direction

-

-

2. REMOVE BACK UP LIGHT BULB
