Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Horn / Horn / Removal

REMOVAL

CAUTION / NOTICE / HINT

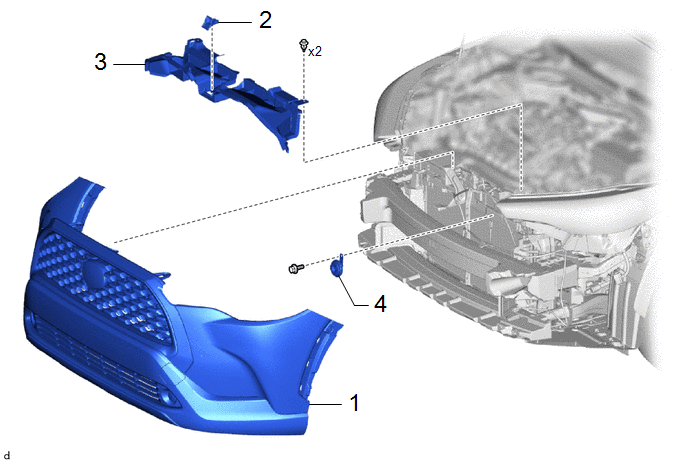

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT BUMPER ASSEMBLY

-

-

-

-

2

LOWER NO. 2 FRONT BUMPER RETAINER

52527C

-

-

-

3

NO. 1 RADIATOR TO SUPPORT SEAL

16561C

-

-

-

4

LOW PITCHED HORN ASSEMBLY

86520

-

-

-

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here

2. REMOVE LOWER NO. 2 FRONT BUMPER RETAINER

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here

3. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here

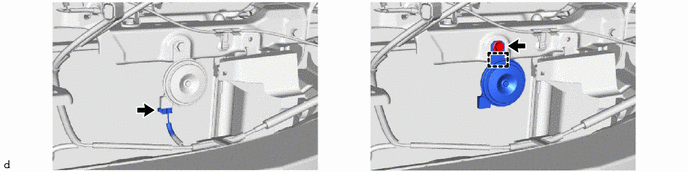

4. REMOVE LOW PITCHED HORN ASSEMBLY
