Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Horn / Horn / Installation

INSTALLATION

CAUTION / NOTICE / HINT

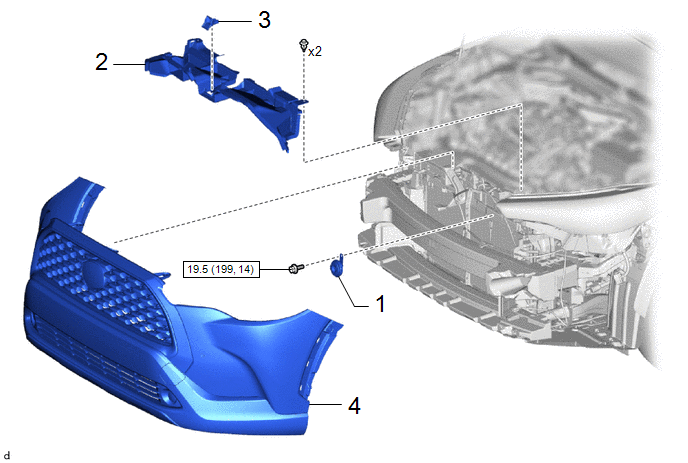

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

LOW PITCHED HORN ASSEMBLY

86520

-

-

-

2

NO. 1 RADIATOR TO SUPPORT SEAL

16561C

-

-

-

3

LOWER NO. 2 FRONT BUMPER RETAINER

52527C

-

-

-

4

FRONT BUMPER ASSEMBLY

-

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL LOW PITCHED HORN ASSEMBLY

Torque:

19.5 N·m {199 kgf·cm, 14 ft·lbf}

2. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL

3. INSTALL LOWER NO. 2 FRONT BUMPER RETAINER

4. INSTALL FRONT BUMPER ASSEMBLY

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here
