Toyota Corolla Cross: Inspection

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Horn / Horn / Inspection

INSPECTION

PROCEDURE

1. INSPECT LOW PITCHED HORN ASSEMBLY

(a) Check the operation.

(1) Apply auxiliary battery voltage and check the operation of the low pitched horn assembly according to the table below.

OK:

Condition

Specified Condition

Auxiliary battery positive (+) - A2-1

Auxiliary battery negative (-) → Horn stay

Low pitched horn assembly sounds

If the result is not as specified, replace the low pitched horn assembly.

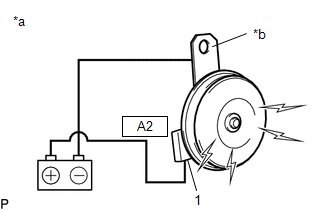

*a

Component without harness connected

(Low Pitched Horn Assembly)

*b

Horn Stay
