Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Front Door Outside Moulding / Removal

REMOVAL

CAUTION / NOTICE / HINT

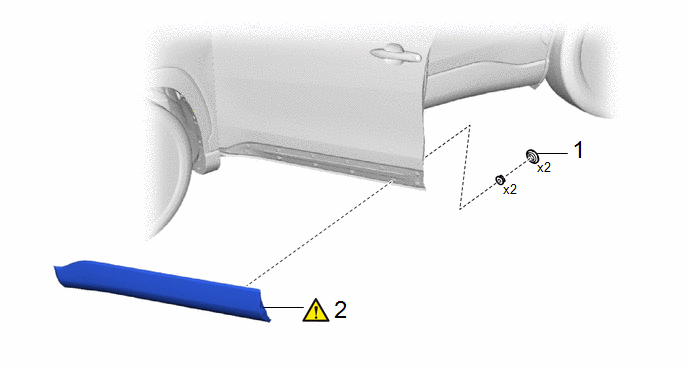

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

HOLE PLUG

-

-

-

-

2

FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

75074

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

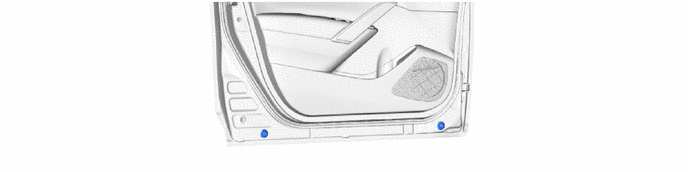

1. REMOVE HOLE PLUG

2. REMOVE FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

Remove in this Direction

-

-

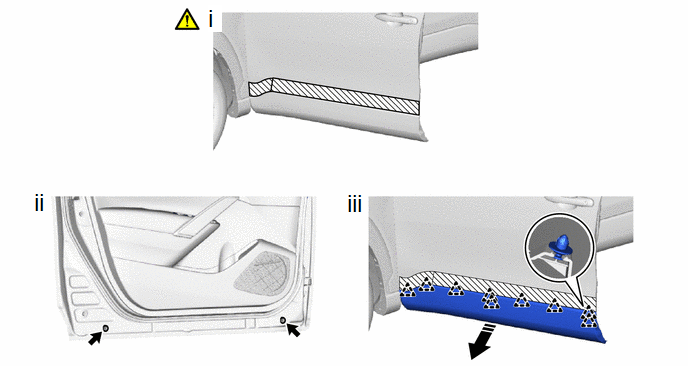

(1) Apply protective tape around the front door outside lower moulding sub-assembly as shown in the illustration.

(2) Remove the 2 nuts.

(3) Disengage the clips to remove the front door outside lower moulding sub-assembly as shown in the illustration.
