Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Front Door Outside Moulding / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

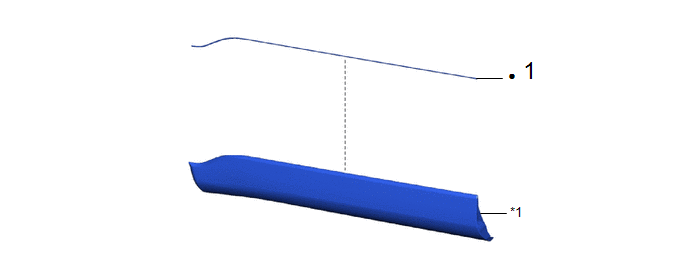

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

FRONT DOOR OUTSIDE MOULDING UPPER PAD

75793

-

-

-

*1

FRONT DOOR OUTSIDE LOWER MOULDING

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT DOOR OUTSIDE MOULDING UPPER PAD
