Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

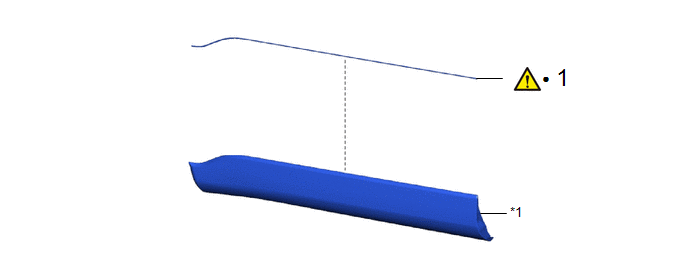

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

FRONT DOOR OUTSIDE MOULDING UPPER PAD

75793

-

-

*1

FRONT DOOR OUTSIDE LOWER MOULDING

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT DOOR OUTSIDE MOULDING UPPER PAD

NOTICE:

When installing a new front door outside moulding upper pad, heat the front door outside lower moulding using a heat light.

Standard:

Item

Temperature

Front Door Outside Lower Moulding

20 to 30°C (68 to 86°F)

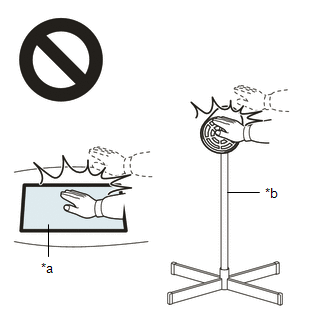

CAUTION:

  • Do not touch the heat light and heated parts.
  • Touching the heat light may result in burns.
  • Touching heated parts for a long time may result in burns.

*a

Heated Part

*b

Heat Light

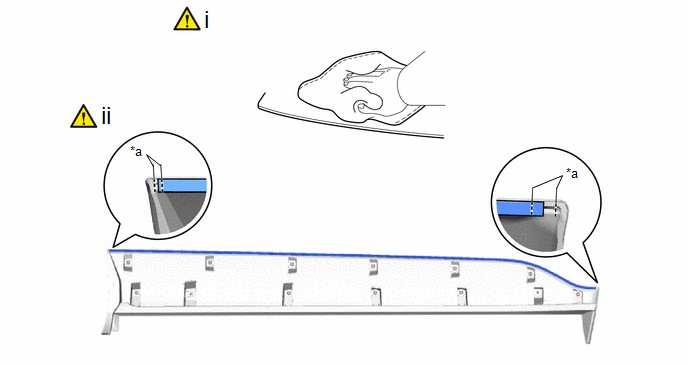

NOTICE:

Do not heat the front door outside lower moulding excessively.

*a

Location Line

-

-

(1) Clean the front door outside lower moulding.

1. Using a heat light, heat the front door outside lower moulding surface.

2. Remove any remaining double-sided tape from the front door outside lower moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:

  • Installing the front door outside moulding upper pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
  • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

(2) Install a new front door outside moulding upper pad.

1. Using a heat light, heat the front door outside lower moulding.

2. Remove the release paper from the front door outside moulding upper pad.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the front door outside moulding upper pad as shown in the illustration.

HINT:

  • Make sure that the end of the front door outside moulding upper pad is between the location lines.
  • Press the front door outside moulding upper pad firmly to install it.
