Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Front Door Outside Moulding / Installation

INSTALLATION

CAUTION / NOTICE / HINT

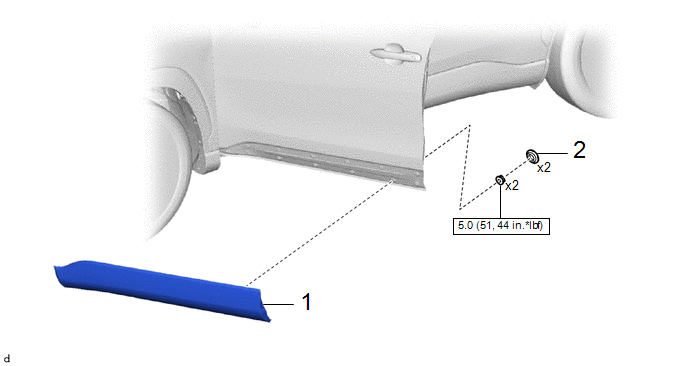

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

75074

-

-

-

2

HOLE PLUG

-

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

Torque:

5.0 N·m {51 kgf·cm, 44 in·lbf}

2. INSTALL HOLE PLUG
