Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

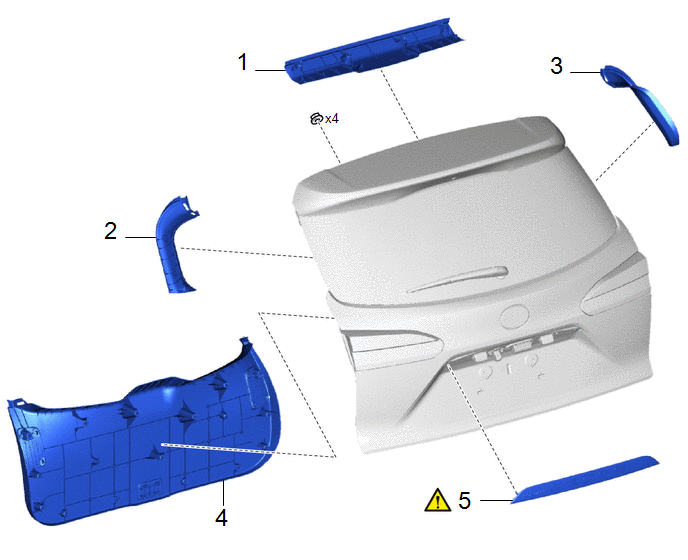

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

2

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

3

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

4

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

5

BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

-

-

-

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

(a) Use the same procedure as for the LH side.

4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

Click here

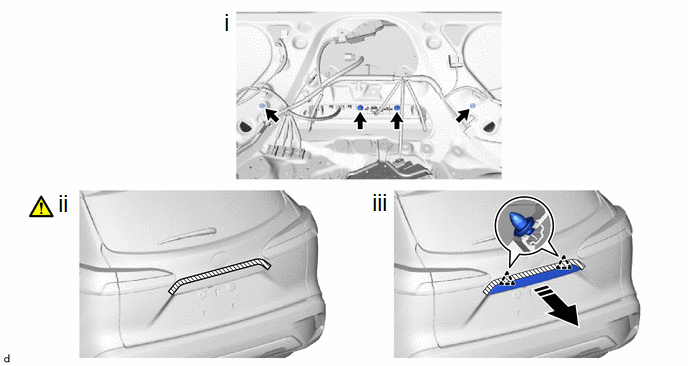

5. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Remove in this Direction

-

-

(1) Remove the 4 nuts.

(2) Apply protective tape around the back door outside garnish sub-assembly as shown in the illustration.

(3) Disengage the clips to remove the back door outside garnish sub-assembly as shown in the illustration.
