Toyota Corolla Cross (2022-2024) Service Manual / Suspension / Rear Suspension / Rear Axle Beam / Removal

REMOVAL

CAUTION / NOTICE / HINT

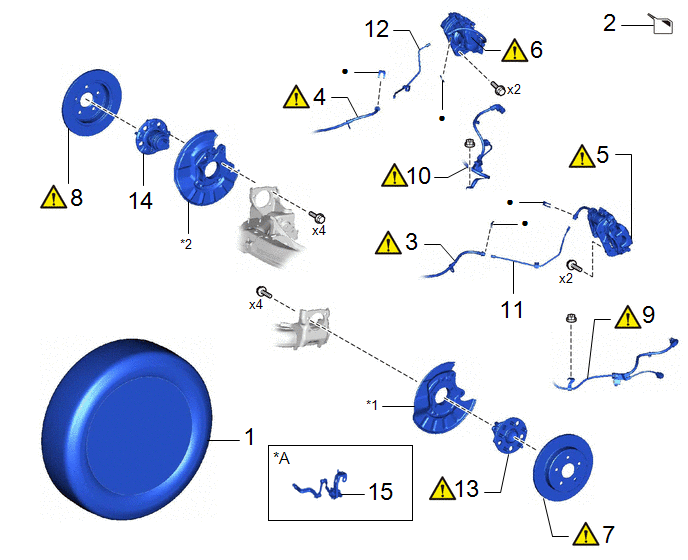

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR WHEELS

-

-

-

-

2

DRAIN BRAKE FLUID

-

-

-

3

REAR BRAKE TUBE FLEXIBLE HOSE LH

-

-

-

4

REAR BRAKE TUBE FLEXIBLE HOSE RH

-

-

-

5

REAR DISC BRAKE CALIPER ASSEMBLY LH

-

-

-

6

REAR DISC BRAKE CALIPER ASSEMBLY RH

-

-

-

7

REAR DISC (for LH Side)

42431

-

-

8

REAR DISC (for RH Side)

42431

-

-

9

SKID CONTROL SENSOR WIRE LH

89544E

-

-

10

SKID CONTROL SENSOR WIRE RH

89544D

-

-

11

REAR NO. 4 BRAKE TUBE

47324

-

-

-

12

REAR NO. 3 BRAKE TUBE

47323

-

-

-

13

REAR AXLE HUB AND BEARING ASSEMBLY LH

42450B

-

-

14

REAR AXLE HUB AND BEARING ASSEMBLY RH

42450A

-

-

15

REAR HEIGHT CONTROL SENSOR LH

89408C

-

-

-

*A

w/ Height Control Sensor

-

-

*1

REAR DISC BRAKE DUST COVER SUB-ASSEMBLY LH

*2

REAR DISC BRAKE DUST COVER SUB-ASSEMBLY RH

●

Non-reusable part

-

-

Procedure

Part Name Code

16

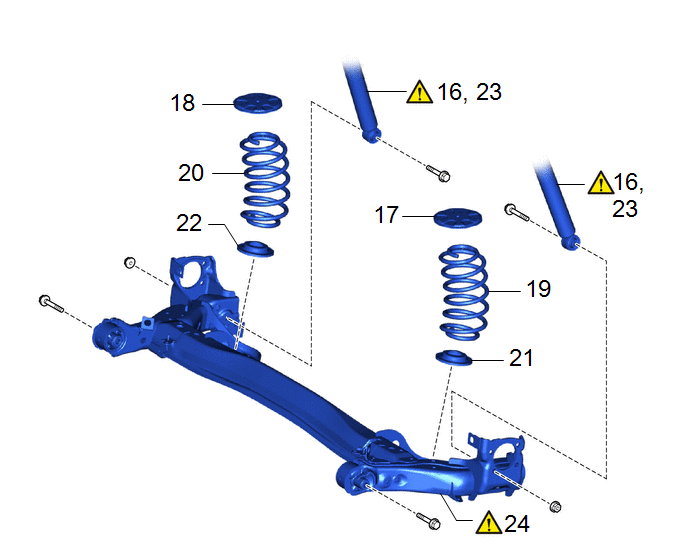

SEPARATE REAR SHOCK ABSORBER ASSEMBLY

-

-

-

17

REAR UPPER COIL SPRING INSULATOR LH

48259A

-

-

-

18

REAR UPPER COIL SPRING INSULATOR RH

48257C

-

-

-

19

REAR COIL SPRING LH

48231B

-

-

-

20

REAR COIL SPRING RH

48231A

-

-

-

21

REAR LOWER COIL SPRING INSULATOR LH

48258C

-

-

-

22

REAR LOWER COIL SPRING INSULATOR RH

48258B

-

-

-

23

TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY

-

-

-

24

REAR AXLE BEAM ASSEMBLY

42110F

-

-

Procedure

Part Name Code

25

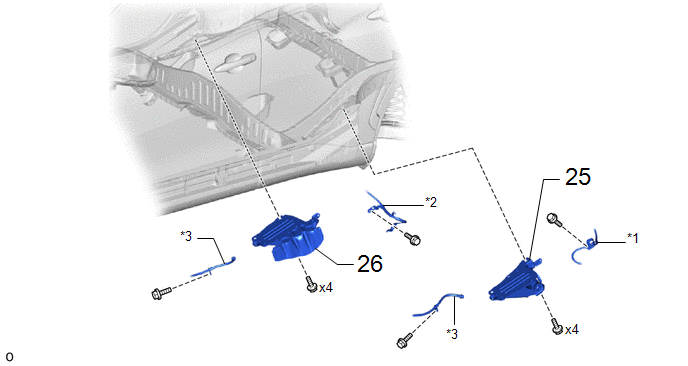

REAR SUSPENSION ARM BRACKET LH

48727

-

-

-

26

REAR SUSPENSION ARM BRACKET RH

48717

-

-

-

*1

SKID CONTROL SENSOR WIRE LH

*2

SKID CONTROL SENSOR WIRE RH

*3

REAR BRAKE TUBE FLEXIBLE HOSE

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle beam assembly removal/ installation are shown below.

Necessary Procedures After Procedure Performed

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Rear wheel alignment adjustment
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

  • Perform "Reset Memory"

Dynamic torque control AWD system

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking Assist Monitor System

Initialize headlight ECU subassembly LH

Automatic headlight beam level control system

PROCEDURE

1. REMOVE REAR WHEELS

Click here

2. DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.

3. SEPARATE REAR BRAKE TUBE FLEXIBLE HOSE LH

Click here

4. SEPARATE REAR BRAKE TUBE FLEXIBLE HOSE RH

(a) Perform the same procedure as for the LH side.

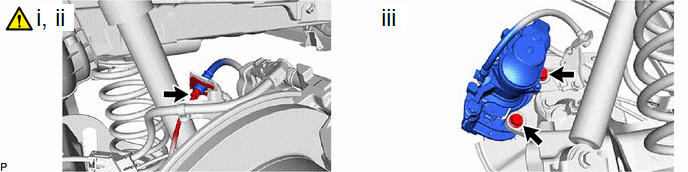

5. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH

(1) Using a union nut wrench, separate the rear flexible hose LH from the rear No. 4 brake tube while holding the rear flexible hose LH with a wrench.

NOTICE:

  • Do not kink or damage the brake line.
  • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

(2) Remove the clip and separate the rear flexible hose LH.

(3) Remove the 2 bolts and rear disc brake caliper assembly LH with rear flexible hose LH.

6. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY RH

(a) Perform the same procedure as for the LH side.

7. REMOVE REAR DISC (for LH Side)

Click here

8. REMOVE REAR DISC (for RH Side)

(a) Perform the same procedure as for the LH side.

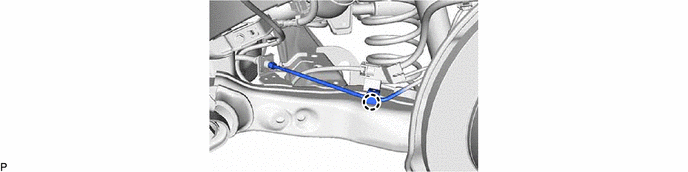

9. SEPARATE SKID CONTROL SENSOR REAR LH

Click here

10. SEPARATE SKID CONTROL SENSOR REAR RH

(a) Perform the same procedure as for the LH side.

11. REMOVE REAR NO. 4 BRAKE TUBE

12. REMOVE REAR NO. 3 BRAKE TUBE

(a) Perform the same procedure as for the rear No. 4 brake tube.

13. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH

Click here

14. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY RH

(a) Perform the same procedure as for the LH side.

15. REMOVE REAR HEIGHT CONTROL SENSOR LH (w/ Height Control Sensor)

Click here

16. SEPARATE REAR SHOCK ABSORBER ASSEMBLY

Click here

17. REMOVE REAR UPPER COIL SPRING INSULATOR LH

Click here

18. REMOVE REAR UPPER COIL SPRING INSULATOR RH

(a) Perform the same procedure as for the LH side.

19. REMOVE REAR COIL SPRING LH

Click here

20. REMOVE REAR COIL SPRING RH

(a) Perform the same procedure as for the LH side.

21. REMOVE REAR LOWER COIL SPRING INSULATOR LH

Click here

22. REMOVE REAR LOWER COIL SPRING INSULATOR RH

(a) Perform the same procedure as for the LH side.

23. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY

Click here

24. REMOVE REAR AXLE BEAM ASSEMBLY

*A

for LH Side

*B

for RH Side

*a

Engine Lifter

*b

Wooden Block

*c

Attachment

-

-

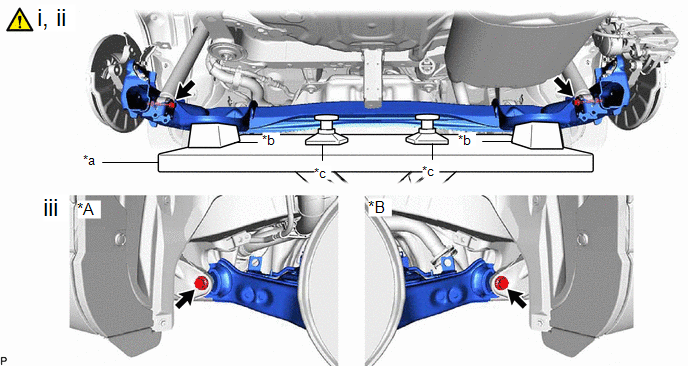

(1) Support the rear axle beam assembly with an engine lifter using 2 wooden blocks and 2 attachments or equivalent tools as shown in the illustration.

CAUTION:

Make sure to secure the rear axle beam assembly to prevent it from dropping.

(2) Remove the 2 bolts and 2 nuts while holding the 2 nuts and separate the rear axle beam assembly from the rear shock absorber assemblies LH and RH.

NOTICE:

Because the nuts have their own stoppers, do not turn the nuts. Loosen the bolts with the nuts secured.

(3) Remove the 2 bolts and rear axle beam assembly.

25. REMOVE REAR SUSPENSION ARM BRACKET LH

HINT:

Perform this procedure only when replacement of the rear suspension arm bracket LH is necessary.

26. REMOVE REAR SUSPENSION ARM BRACKET RH

HINT:

Perform this procedure only when replacement of the rear suspension arm bracket RH is necessary.

(a) Perform the same procedure as for the LH side.
