Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

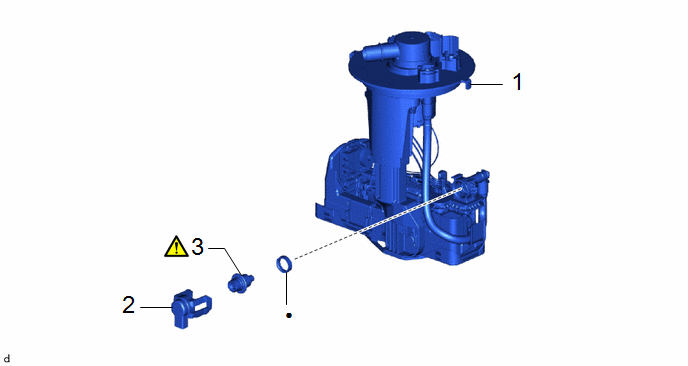

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

77020A

-

-

-

2

FUEL PRESSURE REGULATOR HOLDER

23283B

-

-

-

3

FUEL MAIN VALVE ASSEMBLY

23070

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

CAUTION:

  • Never perform work on fuel system components near any possible ignition sources.
  • Vaporized fuel could ignite, resulting in a serious accident.
  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here

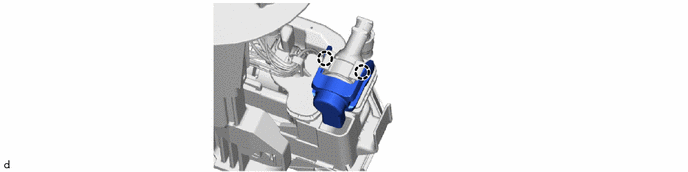

2. REMOVE FUEL PRESSURE REGULATOR HOLDER

3. REMOVE FUEL MAIN VALVE ASSEMBLY

*1

O-ring

-

-

*a

Mesh

*b

Mini-clip

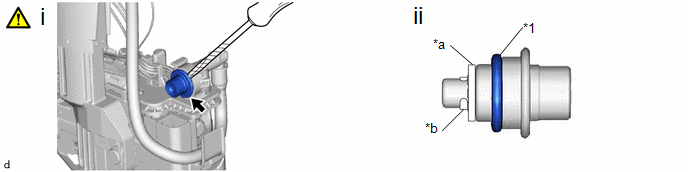

(1) Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel suction tube with pump and gauge assembly.

NOTICE:

  • Pull out the fuel main valve assembly carefully because the O-ring is firmly installed between the fuel main valve assembly and fuel suction tube with pump and gauge assembly.
  • Do not damage the fuel suction tube with pump and gauge assembly.

(2) Remove the O-ring from the fuel main valve assembly.

NOTICE:

Do not remove the mesh and mini-clip from the fuel main valve assembly.
