Toyota Corolla Cross (2022-2025) Service Manual / Engine & Hybrid System / M20a-fxs (fuel) / Fuel Main Valve / Installation

INSTALLATION

CAUTION / NOTICE / HINT

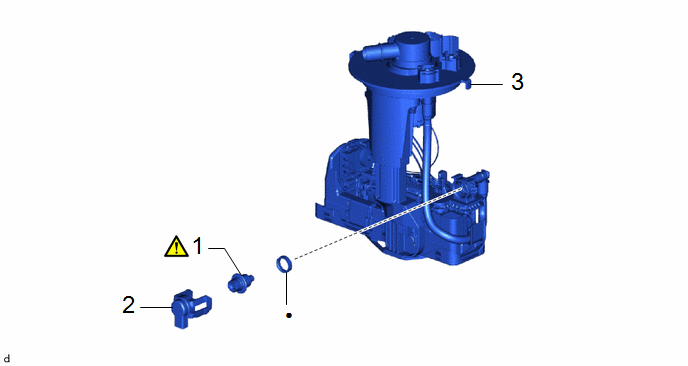

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FUEL MAIN VALVE ASSEMBLY

23070

-

-

2

FUEL PRESSURE REGULATOR HOLDER

23283B

-

-

-

3

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

77020A

-

-

-

●

Non-reusable part

-

-

PROCEDURE

1. INSTALL FUEL MAIN VALVE ASSEMBLY

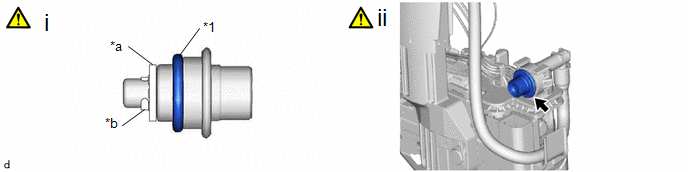

*1

O-ring

-

-

*a

Mesh

*b

Mini-clip

(1) Apply gasoline to a new O-ring. Then install the O-ring to the fuel main valve assembly.

NOTICE:

Make sure that there is no clearance between the fuel main valve assembly and mesh.

(2) Install the fuel main valve assembly to the fuel suction tube with pump and gauge assembly.

NOTICE:

Make sure that the O-ring is not cut or pinched during installation.

2. INSTALL FUEL PRESSURE REGULATOR HOLDER

3. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here
