Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

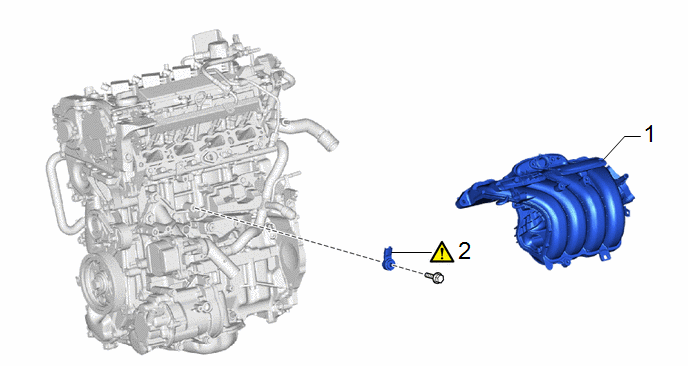

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INTAKE MANIFOLD

17111

-

-

-

2

KNOCK CONTROL SENSOR

89615

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during knock sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of knock control sensor

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

If both left and right front flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

HINT:

  • When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used. (for HEV Model)
    • Learning completes when vehicle is driven

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Front Camera System

      Drive the vehicle straight ahead at 15 km/h(10 mph) or more for 1 second or more.

    • Learning completes when vehicle is operated normally

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

PROCEDURE

1. REMOVE INTAKE MANIFOLD

Click here

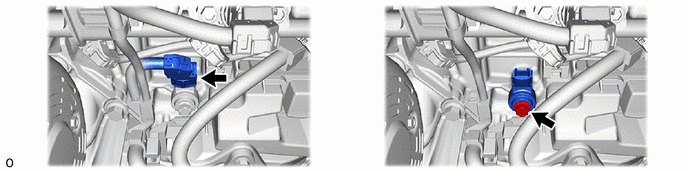

2. REMOVE KNOCK CONTROL SENSOR

NOTICE:

If the knock control sensor has been struck or dropped, replace it.
