Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

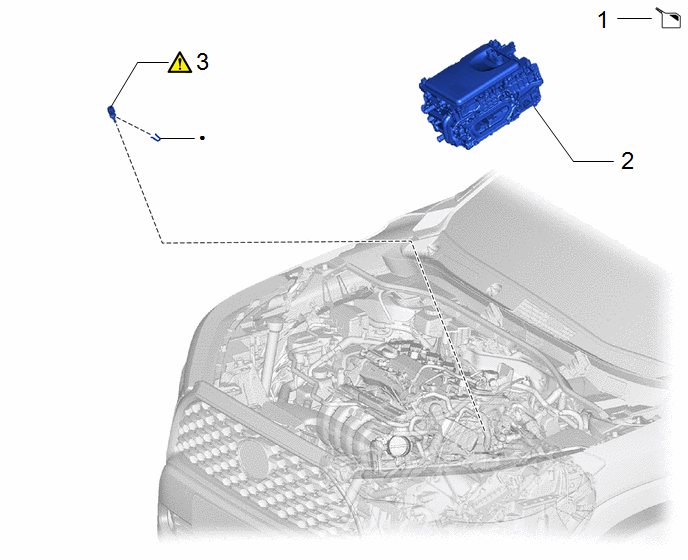

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

DRAIN ENGINE COOLANT

-

-

-

2

INVERTER WITH CONVERTER ASSEMBLY

G92A0

-

-

-

3

ENGINE COOLANT TEMPERATURE SENSOR

89422A

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine coolant temperature sensor removal/installation are shown below.

NOTICE:

If both left and right front flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

HINT:

  • When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used. (for HEV Model)
    • Learning completes when vehicle is driven

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Front Camera System

      Drive the vehicle straight ahead at 15 km/h(10 mph) or more for 1 second or more.

    • Learning completes when vehicle is operated normally

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. DRAIN ENGINE COOLANT (for Engine)

Click here

2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

Click here

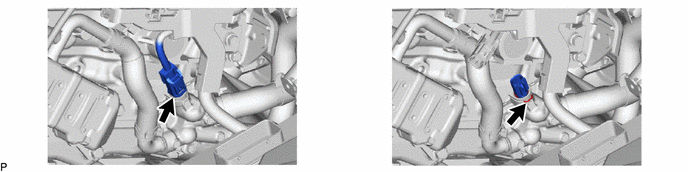

3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

NOTICE:

If the engine coolant temperature sensor has been struck or dropped, replace it.
