Toyota Corolla Cross: Inspection

INSPECTION

PROCEDURE

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

CAUTION:

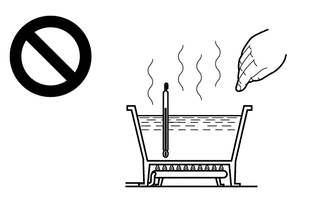

  • Do not put your hands into the water that has been heated for the inspection.
  • Touching the heated water could result in burns.

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

2.32 to 2.59 kΩ

80°C (176°F)

0.310 to 0.326 kΩ

NOTICE:

If checking the engine coolant temperature sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the engine coolant temperature sensor.

If the result is not as specified, replace the engine coolant temperature sensor.

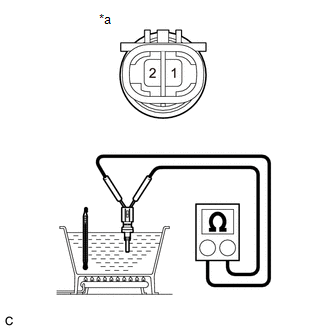

*a

Component without harness connected

(Engine Coolant Temperature Sensor)
