Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

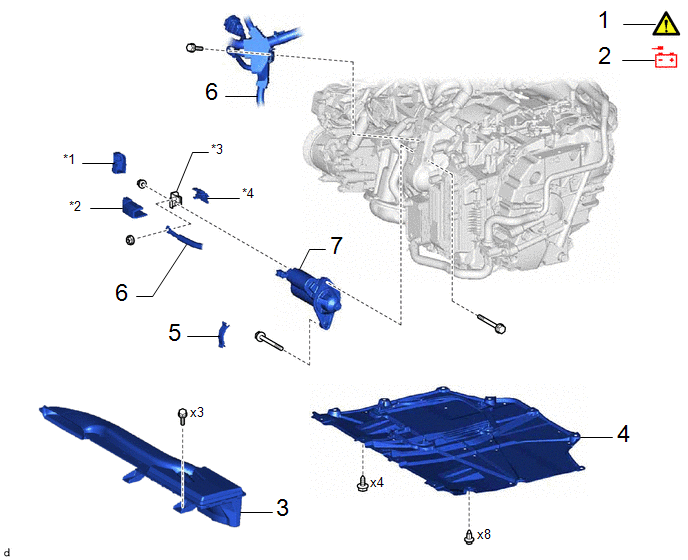

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

3

AIR CLEANER INLET NO. 1

17751

-

-

-

4

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

5

FLYWHEEL HOUSING SIDE COVER

11363A

-

-

-

6

ENGINE WIRE

82121

-

-

-

7

STARTER ASSEMBLY

28100

-

-

-

*1

COVER A

*2

COVER B

*3

STARTER TERMINAL

*4

BASE

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven.

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

3. REMOVE INLET NO. 1 AIR CLEANER

Click here

4. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

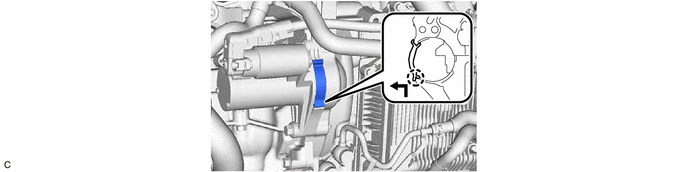

5. REMOVE FLYWHEEL HOUSING SIDE COVER

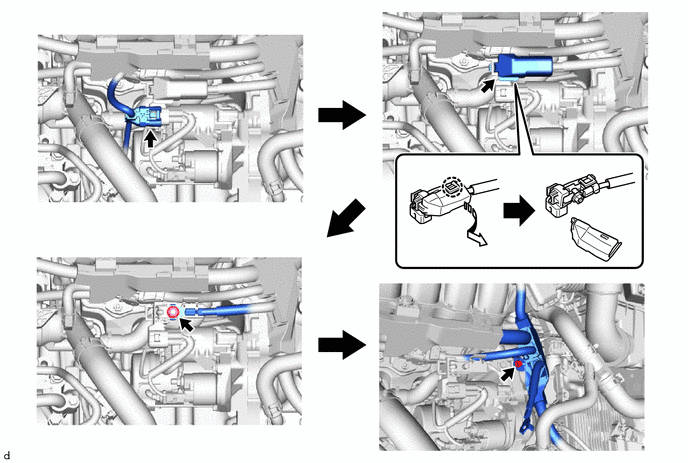

6. DISCONNECT ENGINE WIRE

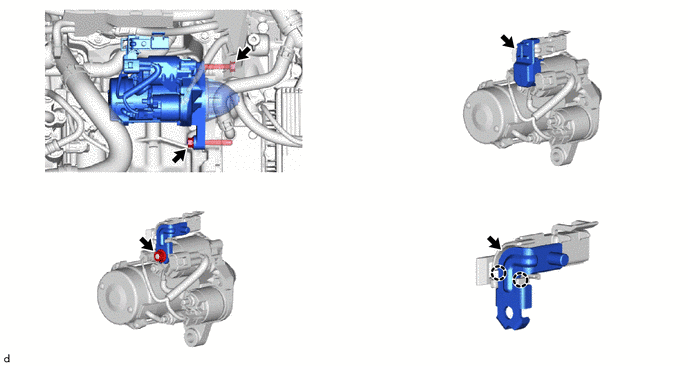

7. REMOVE STARTER ASSEMBLY
