Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Mass Air Flow Meter / Removal

REMOVAL

CAUTION / NOTICE / HINT

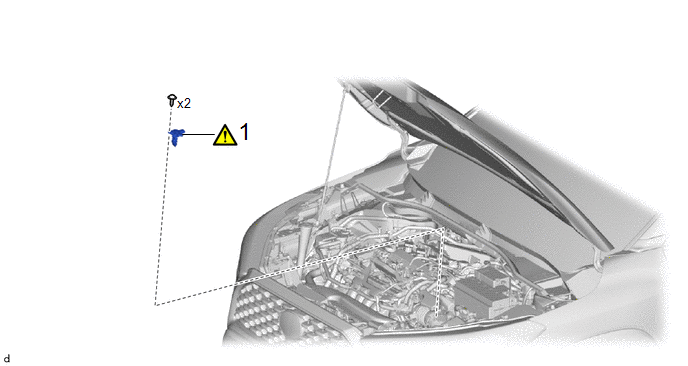

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

MASS AIR FLOW METER SUB-ASSEMBLY

22204

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during mass air flow meter sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of mass air flow meter sub-assembly

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

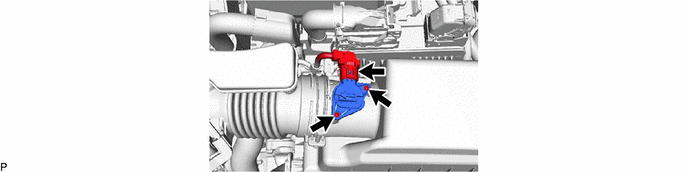

1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

NOTICE:

If the mass air flow meter sub-assembly has been struck or dropped, replace it.
