Toyota Corolla Cross: System Diagram

SYSTEM DIAGRAM

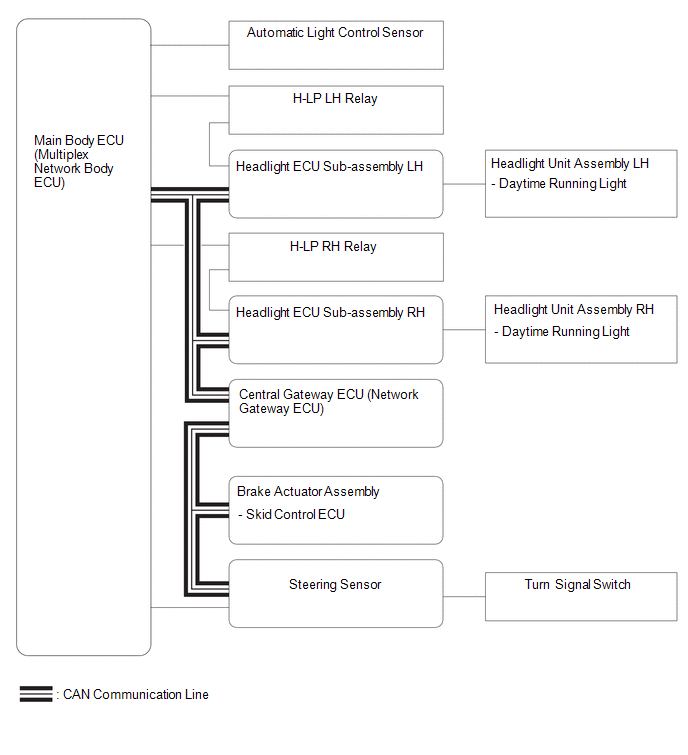

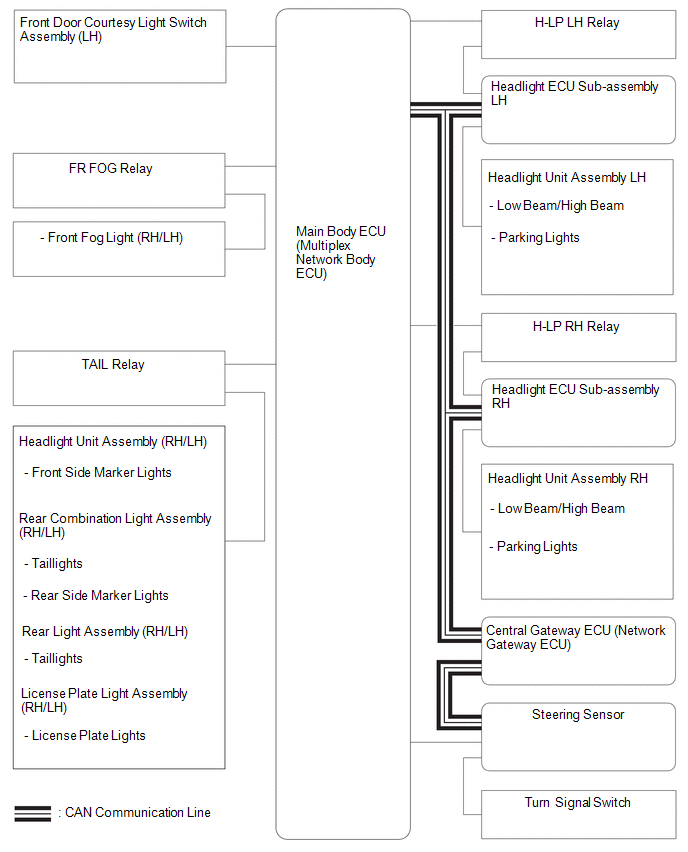

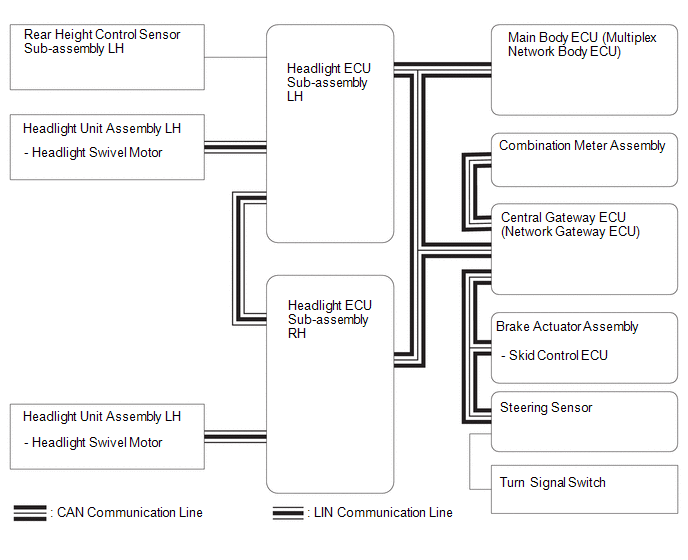

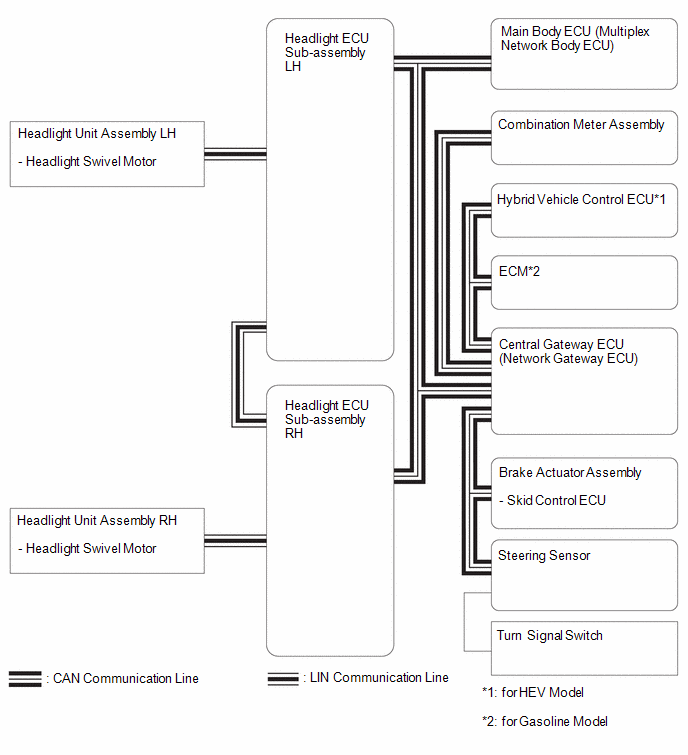

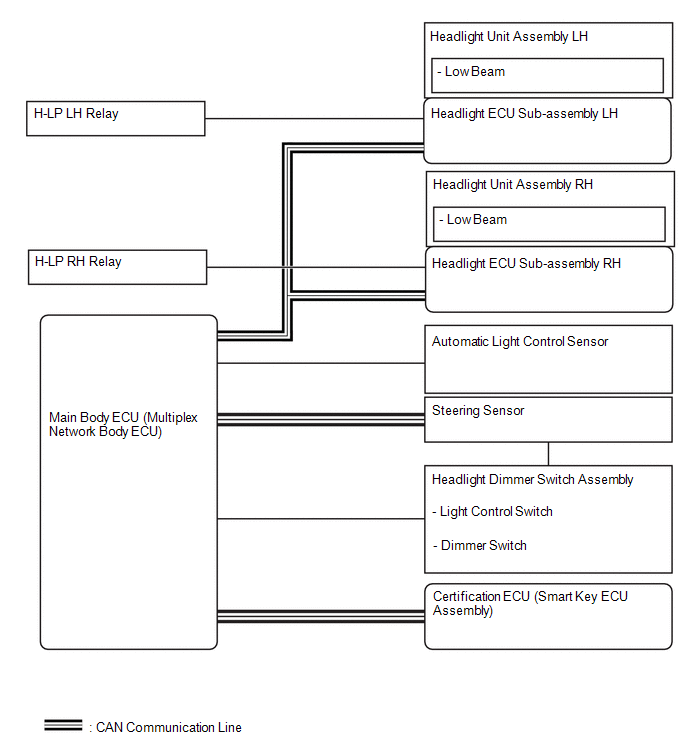

Daytime Running Light Light Auto Turn-off System Automatic Headlight Beam Level Control System Intelligent Adaptive Front-lighting System (AFS) Extended Headlight Lighting System

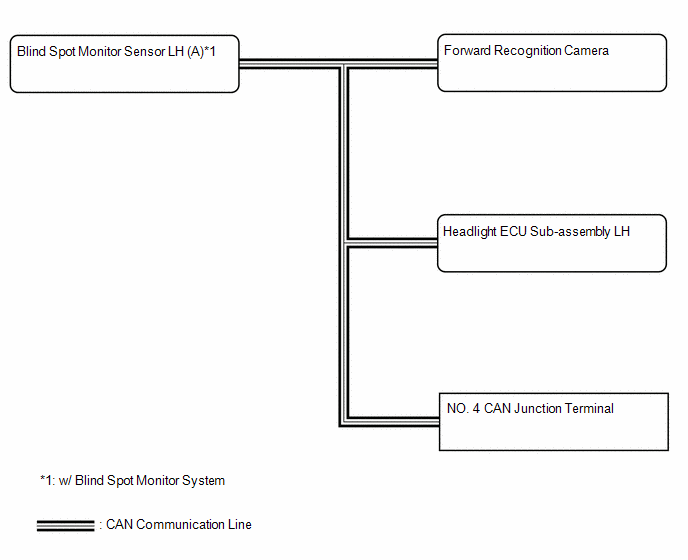

Local BUS Circuit
