Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

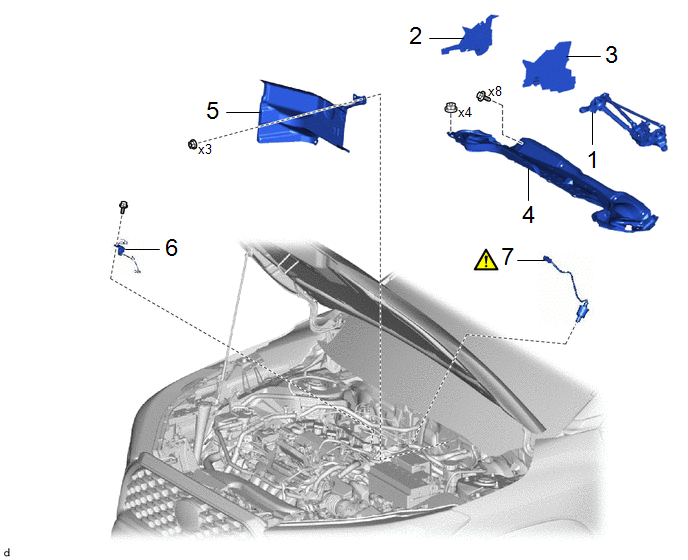

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

-

-

-

-

2

WATER GUARD PLATE

55734D

-

-

-

3

NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

55737B

-

-

-

4

OUTER COWL TOP PANEL SUB-ASSEMBLY

55701J

-

-

-

5

DASH PANEL HEAT INSULATOR

55225C

-

-

-

6

WIRE HARNESS CLAMP BRACKET

-

-

-

-

7

AIR FUEL RATIO SENSOR

89467B

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during air fuel ratio sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

  • Replacement of air fuel ratio sensor (sensor 1)
  • Gas leak from exhaust system is repaired

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click here

2. REMOVE WATER GUARD PLATE

Click here

3. REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

Click here

4. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click here

5. REMOVE DASH PANEL HEAT INSULATOR

Click here

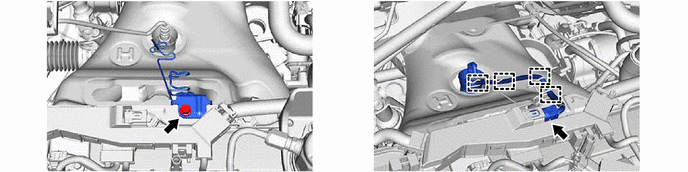

6. REMOVE WIRE HARNESS CLAMP BRACKET

7. REMOVE AIR FUEL RATIO SENSOR

CAUTION:

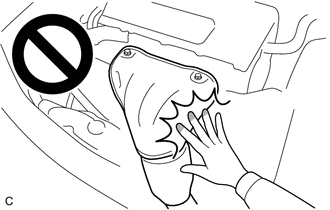

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

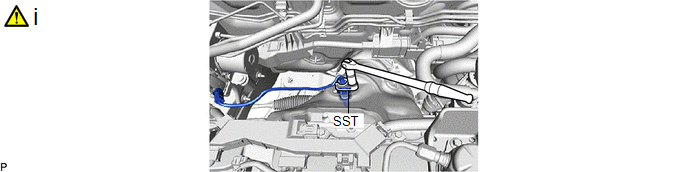

(1) Using SST, remove the air fuel ratio sensor from the exhaust manifold (TWC: Front Catalyst).

SST: 09224-00012
