Toyota Corolla Cross (2022-2025) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Air Fuel Ratio Sensor (for Sensor 1) / Inspection

INSPECTION

PROCEDURE

1. INSPECT AIR FUEL RATIO SENSOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (HA1A) - 2 (+B)

20°C (68°F)

1.6 to 3.2 Ω

1 (HA1A) - 4 (A1A-)

Always

10 kΩ or higher

If the result is not as specified, replace the air fuel ratio sensor.

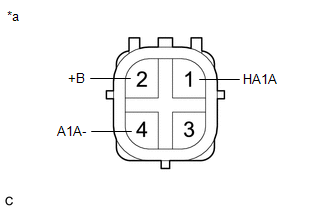

*a

Component without harness connected

(Air Fuel Ratio Sensor)
