Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

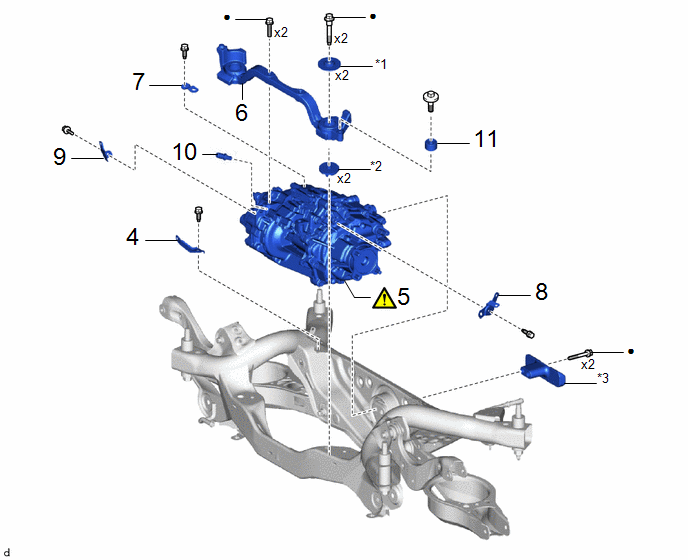

COMPONENTS (REOVAL)

Procedure

Part Name Code

1

PERFORM RESOLVER INITIALIZATION

-

-

-

2

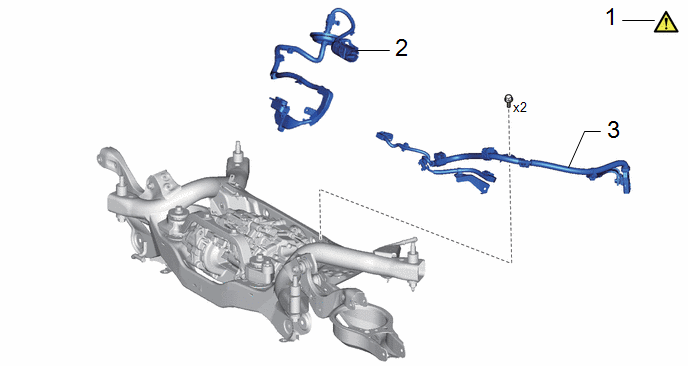

REAR TRACTION MOTOR CABLE

G1149

-

-

-

3

NO. 9 FLOOR WIRE

8216C

-

-

-

Procedure

Part Name Code

4

NO. 3 WIRING HARNESS CLAMP BRACKET

82715T

-

-

-

5

REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY

G1050

-

-

6

FRONT DIFFERENTIAL SUPPORT ASSEMBLY

52380F

-

-

-

7

NO. 3 MOTOR CABLE BRACKET

G1143G

-

-

-

8

NO. 2 MOTOR CABLE BRACKET

G1143F

-

-

-

9

NO. 2 WIRING HARNESS CLAMP BRACKET

82715S

-

-

-

10

REAR TRACTION MOTOR BREATHER PLUG

30900T

-

-

-

11

DIFFERENTIAL DYNAMIC DAMPER

41196B

-

-

-

*1

UPPER DIFFERENTIAL MOUNT STOPPER

*2

LOWER DIFFERENTIAL MOUNT STOPPER

*3

DIFFERENTIAL MASS DAMPER

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front flexible hose removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Rear traction motor with transaxle assembly

  • Resolver learning
  • Initialize resolver
  • DTCs are stored
  • Slight vibration at a vehicle speed of 5 km/h (3 mph) or less
  • Shock or vibration during acceleration

Rear wheel alignment adjustment

  • Perform "Reset Memory"
  • Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

NOTICE:

If both left and right front flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

HINT:

  • When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Front Camera System

      Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 5 second or more.

    • Learning completes when vehicle is operated normally

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PERFORM RESOLVER INITIALIZATION

NOTICE:

If it is necessary to replace the rear traction motor with transaxle assembly, make sure to perform resolver initialization before starting work.

Click here

2. REMOVE REAR TRACTION MOTOR CABLE

Click here

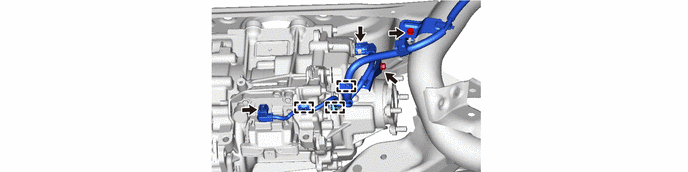

3. SEPARATE NO. 9 FLOOR WIRE

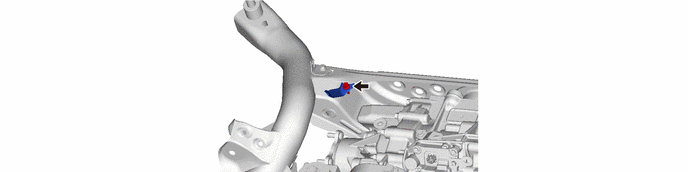

4. REMOVE NO. 3 WIRING HARNESS CLAMP BRACKET

5. REMOVE REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY

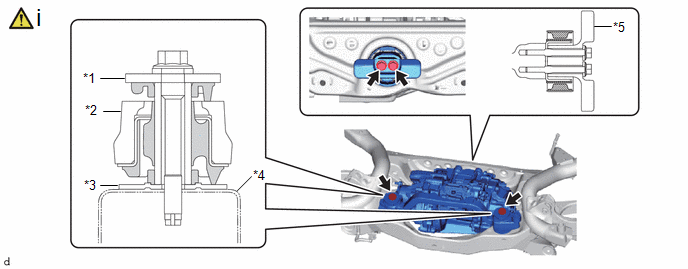

Support Positions

-

-

(1) Using an engine sling device and belts, support the rear traction motor with transaxle assembly in the position shown in the illustration.

NOTICE:

  • Do not lift the rear traction motor with transaxle assembly any higher than is necessary.
  • When lifting the rear traction motor with transaxle assembly, check the location of the center of gravity while lifting it.

*1

UPPER DIFFERENTIAL MOUNT STOPPER

*2

FRONT DIFFERENTIAL SUPPORT ASSEMBLY

*3

LOWER DIFFERENTIAL MOUNT STOPPER

*4

REAR SUSPENSION MEMBER SUB-ASSEMBLY

*5

DIFFERENTIAL MASS DAMPER

-

-

(1) Remove the 4 bolts, the 2 upper differential mount stoppers and the 2 lower differential mount stoppers, and remove the differential mass damper and rear traction motor with transaxle assembly from the rear suspension member sub-assembly.

NOTICE:

  • Do not allow the rear traction motor with transaxle assembly to fall.
  • When removing the rear traction motor with transaxle assembly, make sure not to damage the installation surfaces.

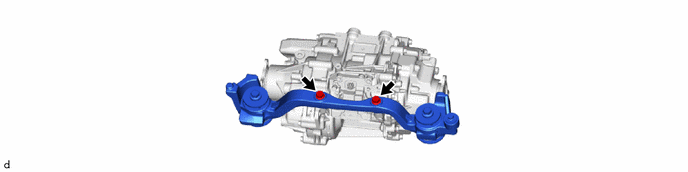

6. REMOVE FRONT DIFFERENTIAL SUPPORT ASSEMBLY

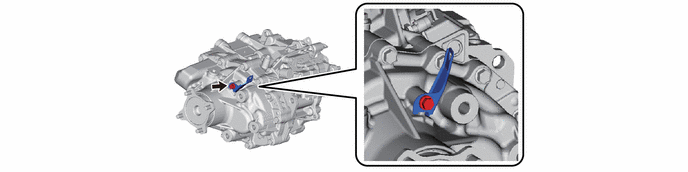

7. REMOVE NO. 3 MOTOR CABLE BRACKET

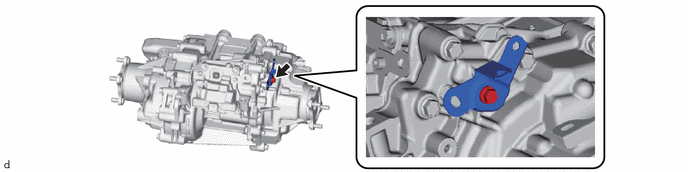

8. REMOVE NO. 2 MOTOR CABLE BRACKET

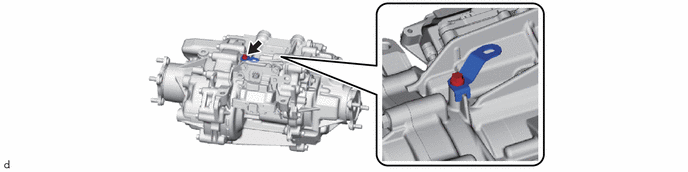

9. REMOVE NO. 2 WIRING HARNESS CLAMP BRACKET

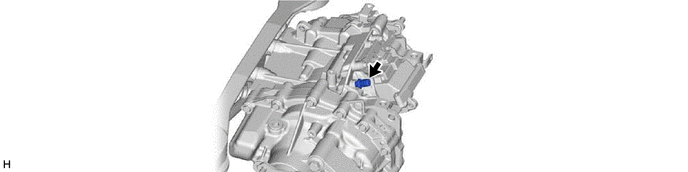

10. REMOVE REAR TRACTION MOTOR BREATHER PLUG

HINT:

Perform this procedure only when replacement of the rear traction motor breather plug is necessary.

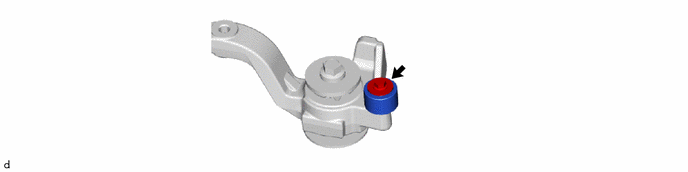

11. REMOVE DIFFERENTIAL DYNAMIC DAMPER

HINT:

Perform this procedure only when replacement of the differential dynamic damper is necessary.
