Toyota Corolla Cross: Parts Location
PARTS LOCATION

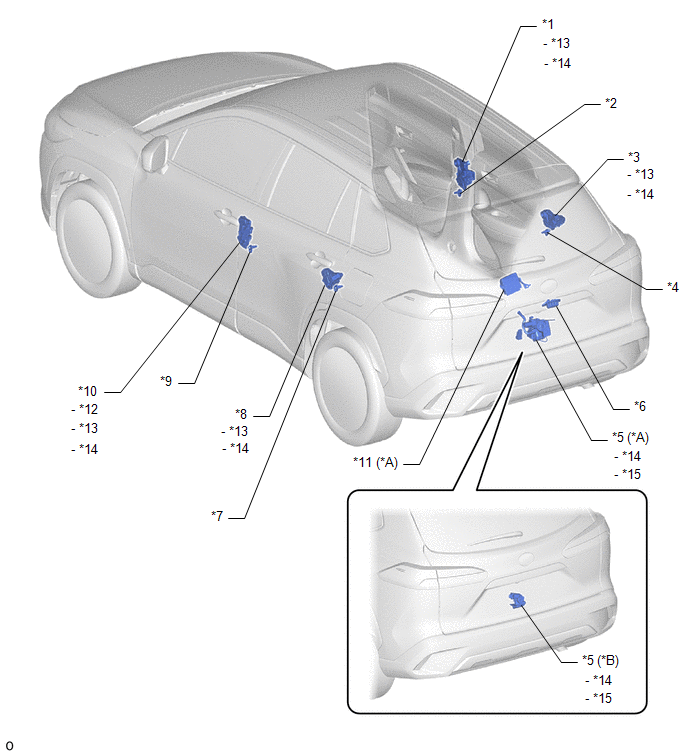

ILLUSTRATION
|
*A | w/ Power Back Door System |
*B | w/o Power Back Door System |
|
*1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
*2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
|
*3 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
*4 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
|
*5 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH |
*6 | BACK DOOR OPENER SWITCH ASSEMBLY |
|
*7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
*8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
|
*9 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
*10 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
|
*11 | MULTIPLEX NETWORK DOOR ECU |
*12 | DOOR KEY LOCK AND UNLOCK SWITCH |
|
*13 | DOOR UNLOCK DETECTION SWITCH |
*14 | DOOR LOCK MOTOR |
|
*15 | BACK DOOR COURTESY SWITCH |
- | - |

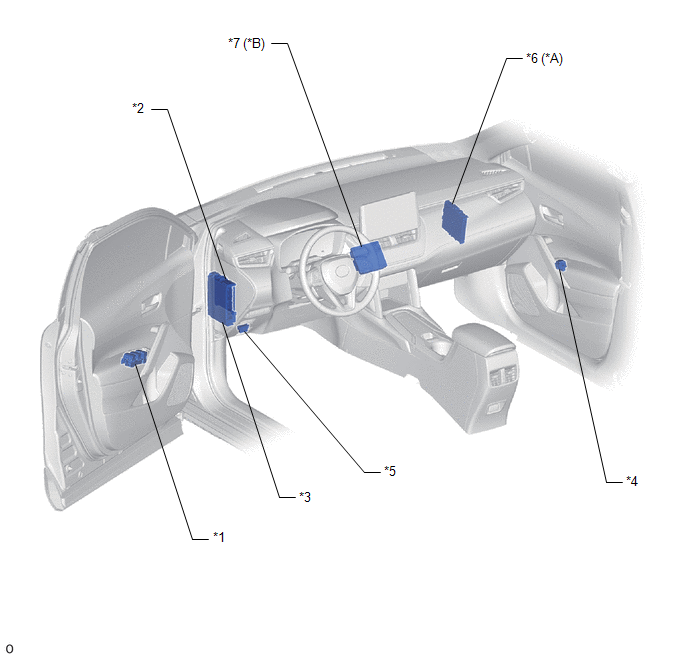

ILLUSTRATION
|
*A | w/ Smart Key System |
*B | w/ Telematics Transceiver |
|
*1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - DOOR CONTROL SWITCH |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
|
*3 | POWER DISTRIBUTION BOX ASSEMBLY - DOOR BACK RELAY (w/o Power Back Door System) |
*4 | DOOR CONTROL SWITCH ASSEMBLY |
|
*5 | DLC3 |
*6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
|
*7 | TELEMATICS TRANSCEIVER |
- | - |
